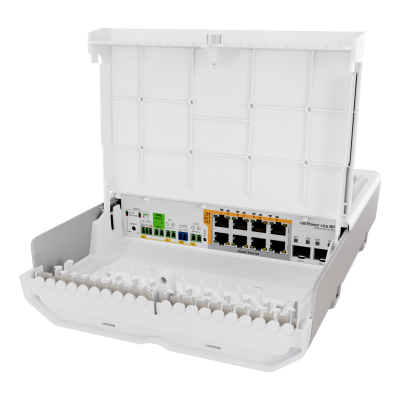

MikroTik netPower Lite 8P PoE Switch Built-in UPS
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik netPower Lite 8P (CSS610-8P-2S+OUT) solves one of the most common problems in outdoor and remote networking: keeping PoE devices online when the power goes out. By integrating a UPS controller and smart battery charger directly into a rugged outdoor switch, MikroTik eliminates the need for a separate UPS unit — reducing cost, cabling complexity, and failure points.
Connect any external 24V nominal battery — typically two 12V units in series — and the switch becomes a seamless UPS. During a power outage, connected PoE devices continue operating without any interruption or reconfiguration. When power is limited, the switch intelligently prioritizes PoE output first and slows battery charging second, ensuring cameras and access points stay online as long as possible.
The smart charger supports flooded, AGM, gel-based lead-acid batteries, and LiFePO₄ packs with proper BMS — charging from 0.2 A to 1.6 A across a voltage range of 20–31.7V. A three-stage charging process and an included temperature sensor fine-tune charging voltage for lead-acid batteries and block charging outside safe temperature ranges, extending battery life significantly.
Key features:
- 8× Gigabit Ethernet PoE-out (802.3af/at) — 120W total PoE budget
- 2× 10G SFP+ uplinks for high-speed backhaul
- Integrated UPS switchover — seamless failover to external battery during outages
- Smart 3-stage battery charger — 0.2–1.6A, 20–31.7V
- Supports flooded, AGM, gel lead-acid, and LiFePO₄ batteries with BMS
- Included temperature sensor — optimizes charging voltage, blocks charging outside safe range
- Alarm input — 2-wire contact for tamper detection, reported via SwOS Lite and SNMP
- 24–57V DC input via 2-pin terminal (battery 22–30V)
- PoE prioritized automatically when power is limited — charging slows first
- Max power consumption 208W, 9W without attachments
- Marvell 88E6193 switch chip
- SwOS Lite — simple, fast, and efficient switch management
- Passive cooling, -40°C to +70°C, MTBF ~200,000 hours at 25°C
- Current, voltage, and CPU temperature monitoring
- Certified CE, EAC, RoHS | IP54
In the box: 2× hose clamps, K-66 fastening set, temperature sensor.
Ideal for: WISPs, CCTV and video surveillance installations, apartment buildings, utility networks, smart-city infrastructure, remote sites, outdoor wireless backhaul, and any deployment where continuous PoE uptime is required regardless of grid availability.
- Product code
- CSS610-8P-2S+OUT
- Switch chip model
- 88E6193
- Operating System
- SwOS
- Storage size
- 64 MB, Flash
- Number of DC inputs
- 3 (2x 2-pin terminal)
- Max Power consumption
- 181 W
- Total output power
- 120 W
- Dimensions
- 303 x 212 x 78 mm
- 2-pin terminal input Voltage
- 24-57 V
- Operating Temperature
- -40°C to +70°C
- Number of 10G SFP+ ports
- 2
- Number of 1G Ethernet ports
- 8
- PoE-Out
- 802.3af/at
- PoE-Out ports
- Ether1-Ether8
- Low voltage PoE-Out current limit
- 1000 mA
- High voltage PoE-Out current limit
- 640 mA
- Max power consumption (without attachments)
- 7 W
