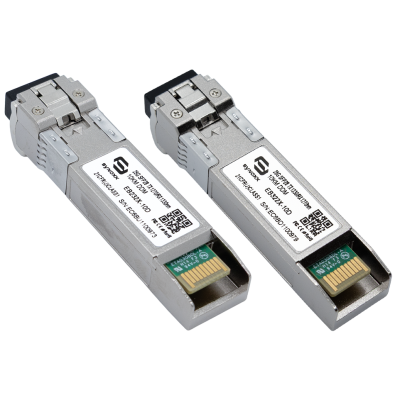

SYNOXX 25G SFP28 BiDi Transceiver Pair EB232X-10D/EB322X-10D LC 10km
The SYNOXX EB232X-10D/EB322X-10D is a matched 25G SFP28 BiDi transceiver pair
enabling bidirectional 25Gbps transmission over a single strand of single-mode
fiber (SMF) up to 10km using complementary wavelengths of 1270nm TX/1330nm RX
and 1330nm TX/1270nm RX. Supports data rates up to 25.78125Gbps with Digital
Diagnostic Monitoring (DDM), DFB transmitter, APD receiver, and power consumption
of ≤1.5W per module, compliant with IEEE 802.3cc, SFF-8431, SFF-8432, and
SFF-8472 standards. Hot-pluggable, RoHS compliant, and IC Certified.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX EB232X-10D/EB322X-10D is a matched 25G SFP28 BiDi transceiver pair engineered for bidirectional 25Gbps transmission over a single strand of single-mode fiber up to 10km. Using complementary wavelengths — 1270nm TX/1330nm RX on one module and 1330nm TX/1270nm RX on the other — the pair eliminates the need for duplex fiber runs, cutting fiber infrastructure costs significantly in data centre, enterprise, and telecom deployments. This product is sold as a matched pair and both modules are required for correct operation.
Supporting data rates up to 25.78125Gbps and compliant with IEEE 802.3cc, SFF-8431, SFF-8432, and SFF-8472 standards, each module features a DFB transmitter and APD receiver for stable, high-sensitivity long-distance performance. Full Digital Diagnostic Monitoring (DDM) provides real-time visibility into temperature, voltage, TX/RX optical power, and bias current. Power consumption is ≤1.5W per module, with an operating temperature range of 0°C to 70°C and a standard LC simplex connector.
IC Certified by Industry Canada (ISED), the EB232X-10D/EB322X-10D meets regulatory requirements for commercial deployment.
- Product code
- EB232X-10D / EB322X-10D
- Tested ambient temperature
- 0 to +70°C
- Connector
- LC
- Data Rate
- 25G
- Distance
- 10KM
- Format
- SFP28
- Wavelength
- 1270nm Tx / 1330nm Rx
- Fiber Type
- SM
- DDM
- Yes
