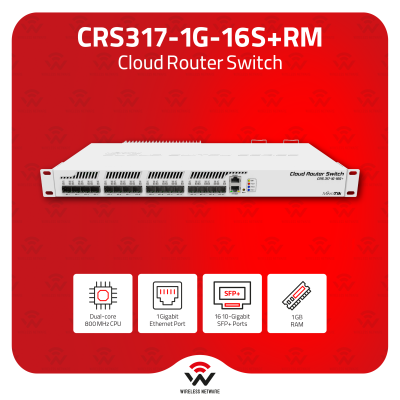

MikroTik CRS317-1G-16S+RM 1G+16-Port 10GbE SFP+ Layer 3 Rackmount Switch

The MikroTik CRS317-1G-16S+RM (Cloud Router Switch) is a purpose-built high-performance 10 Gigabit Ethernet switch designed for environments where port density, throughput, and reliability are paramount. With sixteen SFP+ cages capable of non-blocking wire-speed performance and the choice between RouterOS and SwitchOS, it bridges the gap between a managed switch and a full Layer 3 router.

Switching Performance

The heart of the CRS317-1G-16S+RM is the 98DX8216 switching chip — also serving as the dual-core 800 MHz ARM 32-bit CPU — paired with 1 GB of RAM. The switching fabric delivers non-blocking Layer 2 throughput across all ports simultaneously, with measured performance of up to 158,906 Mbps at 1518-byte packets and 122,667 Mbps at 64-byte packets for Layer 2 throughput, and a full non-blocking Layer 1 capacity of 161,000 Mbps (322,000 Mbps bidirectional). This confirms true wire-speed performance at all packet sizes across all 16 SFP+ ports concurrently — a key requirement for demanding data centre and aggregation deployments.

Ports & Connectivity

The CRS317-1G-16S+RM provides sixteen SFP+ cages supporting 10GbE fibre, DAC, or compatible SFP+ modules, plus one 10/100/1000 Gigabit Ethernet port for out-of-band management or general connectivity. An RJ45 serial console port is also provided for direct out-of-band management access, independent of the network.

Dual Operating System — RouterOS & SwitchOS

A key differentiator of the CRS317 is its support for both RouterOS and SwitchOS via dual boot. RouterOS provides the full MikroTik Layer 3 routing, firewall, QoS, VLAN, MPLS, and VPN feature set — all managed via WinBox, WebFig, or CLI. SwitchOS offers a streamlined, switch-focused interface for operators who prefer a more traditional managed switch configuration experience. Both operating systems are pre-installed and licensed — no additional software purchase is required.

Power & Cooling

The unit accepts AC input in the 100–240 V range at 50–60 Hz via two redundant PSU slots, providing power supply redundancy for high-availability deployments. Maximum power consumption is 44 W. Cooling is handled by two fans. On-board CPU temperature monitoring and a beeper provide health alerting.

Build & Form Factor

The CRS317-1G-16S+RM occupies 1U of rack space at 443 × 224 × 44 mm and ships with rack ears, a K10 screw kit, and two IEC power cords. It is designed for operation between -20°C and 60°C. MTBF is approximately 200,000 hours at 25°C.

Use Cases

The CRS317-1G-16S+RM is well suited for data centre top-of-rack 10G switching, ISP network aggregation and distribution layers, enterprise core switching, server interconnect fabrics, and any environment requiring high-port-density 10GbE switching with the option of full Layer 3 routing capabilities.

Key Specifications at a Glance

• Product Code: CRS317-1G-16S+RM
• SFP+ Ports: 16x 10GbE
• Gigabit Ethernet Ports: 1x 10/100/1000
• Switch/CPU Chip: 98DX8216, dual-core 800 MHz, ARM 32-bit
• RAM: 1 GB
• Storage: 16 MB FLASH
• Operating System: RouterOS / SwitchOS (dual boot, pre-installed and licensed)
• Non-Blocking Layer 2 Throughput: Up to 158,906 Mbps (1518-byte)
• Non-Blocking Layer 1 Capacity: 322,000 Mbps (bidirectional)
• Serial Console: RJ45
• AC Power Input: 100–240 V, 50–60 Hz
• PSU Slots: 2 (redundant)
• Max Power Consumption: 44 W
• Cooling: 2 fans
• Form Factor: 1U rackmount
• Dimensions: 443 × 224 × 44 mm
• Operating Temperature: -20°C to 60°C
• MTBF: ~200,000 hours at 25°C
• Certifications: CE, EAC, RoHS
• Included: Rack ears, 2x IEC cords, K10 screw kit
