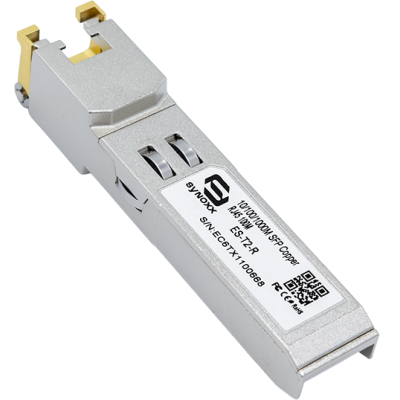

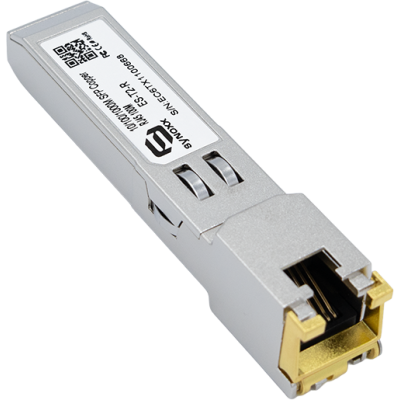

SYNOXX 1G SFP Copper Transceiver ES-T2-R RJ45 100m
The SYNOXX ES-T2-R is a 1000Base-T SFP copper transceiver delivering tri-speed
10/100/1000Mbps Ethernet connectivity over standard Cat5 twisted-pair cables up to
100 metres — enabling 1G copper uplinks on any SFP-equipped switch or router without
fiber or media converters. Features a hot-pluggable SFP form factor, RJ45 connector,
SGMII interface, fully metallic low-EMI enclosure, and low power consumption of
~1.05W, compliant with IEEE 802.3 and SFP MSA standards. Hot-pluggable, RoHS
compliant, and IC Certified.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX ES-T2-R is a 1000Base-T SFP copper transceiver engineered for tri-speed 10/100/1000Mbps Ethernet connectivity over standard Cat5 twisted-pair cables up to 100 metres. With a hot-pluggable SFP form factor and RJ45 connector, it adds a 1G copper port to any SFP-equipped switch, router, or media converter — eliminating the need for fiber infrastructure or dedicated copper-to-fiber media converters in access-layer and edge deployments.
Operating via SGMII interface with a fully metallic enclosure for low EMI performance, the ES-T2-R draws only ~1.05W and supports an operating temperature range of 0°C to 70°C. Compliant with IEEE 802.3 and SFP MSA standards, it delivers broad cross-vendor interoperability across the full range of SFP-equipped enterprise and SMB networking equipment.
IC Certified by Industry Canada (ISED), the ES-T2-R meets regulatory requirements for commercial deployment.
- Product code
- ES-T2-R
- Tested ambient temperature
- 0 to +70°C
- Connector
- RJ45
- Data Rate
- 10/100/1000 Mbps
- Distance
- 100M
