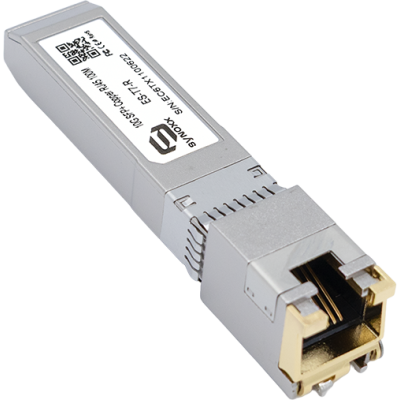

SYNOXX 10G SFP+ Copper Transceiver ES-T7-R RJ45 100m
The SYNOXX ES-T7-R is a 10GBase-T SFP+ copper transceiver delivering 10Gbps data
transfers over standard Cat6a or Cat7 twisted-pair cables up to 100 metres —
eliminating the need for fiber optics in short-to-medium range enterprise and data
centre deployments. Supports 10G and 1G data rates with a maximum power consumption
of 2.5W, hot-pluggable SFP+ form factor, and compliance with IEEE 802.3 and SFP+ MSA
standards. Hot-pluggable, RoHS compliant, and IC Certified for Canada and the US.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX ES-T7-R is a 10GBase-T SFP+ copper transceiver engineered for high-speed 10Gbps Ethernet connectivity over standard Cat6a or Cat7 twisted-pair cables up to 100 metres — the cost-effective alternative to fiber optics for data centers, enterprise LAN deployments, and ISP equipment rooms. The ES-T7-R brings 10G performance to existing copper cabling infrastructure without requiring a fiber upgrade.
Supporting data rates of 10Gbps and 1Gbps, the ES-T7-R is hot-pluggable and compliant with IEEE 802.3 and SFP+ MSA standards. With a maximum power consumption of 2.5W, a fully metallic enclosure for low EMI, 2-wire serial EEPROM access, and an operating temperature range of 0°C to 70°C, it delivers reliable, interoperable 10G copper performance across a wide range of SFP+-equipped switches and routers.
IC Certified by Industry Canada (ISED), the SYNOXX ES-T7-R meets regulatory requirements for commercial deployment.
- Product code
- ES-T7-R
- Connector
- RJ45 Copper
- Data Rate
- 1 Gbps, 10 Gbps
- Distance
- 100 m
- Operating temperature
- 0°C to 70°C
