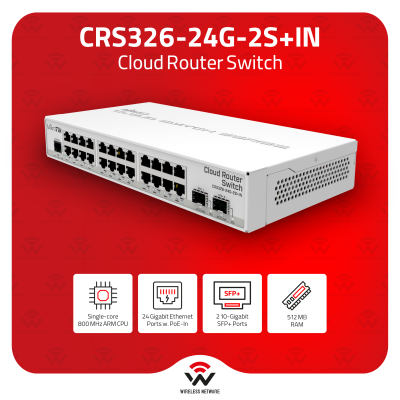

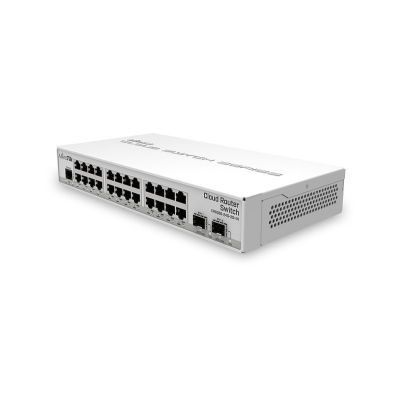

MikroTik CRS326-24G-2S+IN 24-Port GbE 10G Switch
The MikroTik CRS326-24G-2S+IN is a compact fanless 26-port dual-boot managed switch — 98DX3236 dual-core ARM 32-bit at 800 MHz, 512 MB RAM, 16 MB flash, RouterOS v7 License 5 or SwitchOS, 24× GbE + 2× SFP+ (1.25G SFP and 10G SFP+ supported), 1× RJ45 serial console, dual power input (DC jack 10–30V + passive PoE-in 10–30V), 21W max, passive cooling, IP20, 285 × 144 × 44 mm, -40°C to +60°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Desktop enclosure — rackmount equivalent is the CRS326-24G-2S+RM. Includes 24V 1.2A power adapter. Free software updates for life of product or minimum 5 years from purchase.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CRS326-24G-2S+IN delivers server room power in a compact, fanless desktop case. It features 24 Gigabit Ethernet ports and 2 SFP+ cages for high-speed fiber connectivity. Powered by a sufficient built-in CPU and 512MB RAM, it handles home networking tasks like firewall, NAT, and VPN with ease. The dual boot option lets you choose between SwOS for lightweight management or RouterOS for advanced functionality. Offering features like VLAN configuration, MAC filtering, traffic mirroring, and bandwidth control, this switch is perfect for home or small office networks. Affordable and portable, the CRS326-24G-2S+IN matches the power and features of its rackmount counterpart.
Switching results
| CRS326-24G-2S+INr2 | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 3,576.1 | 43,427.8 | 10,338.3 | 42,345.9 | 65,476.2 | 33,523.8 |
| Switching | Non blocking Layer 2 capacity | 3,576.1 | 86,855.7 | 10,338.3 | 84,691.7 | 65,476.2 | 67,047.6 |
| Switching | Non blocking Layer 1 throughput | 3,576.1 | 44,000.0 | 10,338.3 | 44,000.0 | 65,476.2 | 44,000.0 |
| Switching | Non blocking Layer 1 capacity | 3,576.1 | 88,000.0 | 10,338.3 | 88,000.0 | 65,476.2 | 88,000.0 |
Ethernet test results
| CRS326-24G-2S+INr2 | 98DX3236 all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 104,3 | 1266.6 | 273,5 | 1120.3 | 449 | 229.9 |
| Bridging | 25 bridge filter rules | 104 | 1263.0 | 104,6 | 428.4 | 104,5 | 53.5 |
| Routing | none (fast path) | 104,3 | 1266.6 | 273,9 | 1121.9 | 343,5 | 175.9 |
| Routing | 25 simple queues | 104,3 | 1266.6 | 136,9 | 560.7 | 137,4 | 70.3 |
| Routing | 25 IP filter rules | 64,8 | 786.9 | 65,9 | 269.9 | 65,8 | 33.7 |
- Architecture
- ARM 32bit
- CPU core count
- 1
- CPU nominal frequency
- 800 MHz
- Operating System
- RouterOS / SwitchOS
- Size of RAM
- 512 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- Tested ambient temperature
- -40°C to 60°C
- Suggested price
- $189.00
- Number of DC inputs
- 2 (PoE-IN, DC jack)
- DC jack input Voltage
- 10-30 V
- Max Power consumption
- 21 W
- PoE in
- Passive PoE
- PoE in input Voltage
- 10-30 V
- 10/100/1000 Ethernet ports
- 24
- Dimensions
- 285 x 144 x 44 mm
- Certification
- CE/RED, EAC, ROHS
