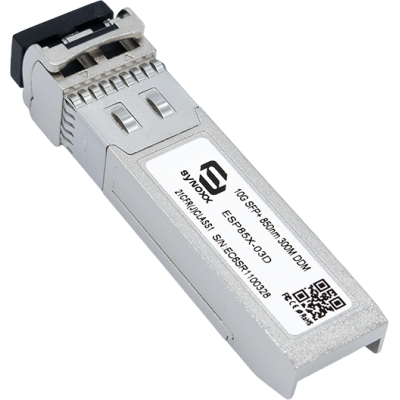

SYNOXX 10G SFP+ SR Transceiver ESP85X-03D LC 300m
The SYNOXX ESP85X-03D is a 10G SFP+ SR optical transceiver delivering 10Gbps
transmission over multimode fiber (MMF) up to 300m using an 850nm VCSEL transmitter
and PIN photodetector — purpose-built for high-density, short-range data centre and
enterprise fiber links. Supports data rates up to 10Gbps with Digital Diagnostic
Monitoring (DDM), all-metal housing for EMI protection, and compliance with IEEE
802.3ae and SFF-8431 standards, with power consumption under 1W. Hot-pluggable,
RoHS compliant, and IC Certified.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX ESP85X-03D is a 10G SFP+ SR optical transceiver engineered for short-range 10Gbps transmission over multimode fiber (MMF) up to 300m over OM3 — the standard choice for within-building and same-campus 10G fiber links in data centres, enterprise server rooms, and high-density switching environments. Operating at 850nm with a VCSEL transmitter and PIN photodetector, the ESP85X-03D delivers stable, energy-efficient optical performance over existing OM3 or OM4 multimode fiber infrastructure.
Compliant with IEEE 802.3ae and SFF-8431 standards, the ESP85X-03D is fully hot-pluggable and supports Digital Diagnostic Monitoring (DDM) for real-time visibility into temperature, voltage, TX/RX optical power, and bias current. Its all-metal housing provides excellent EMI protection in dense rack environments, with power consumption under 1W and an operating temperature range of 0°C to 70°C.
IC Certified by Industry Canada (ISED), the ESP85X-03D meets regulatory requirements for commercial deployment.
- Product code
- ESP85X-03D
- Tested ambient temperature
- 0 to 70 °C
- Connector
- LC
- Data Rate
- 10G
- Distance
- 300M
- Format
- SFP+
- Mode
- MM
- Wavelength
- 850nm
- DDM
- Yes
