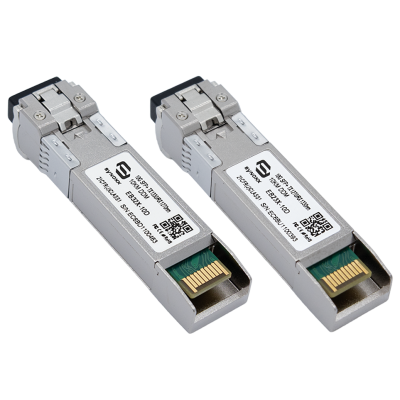

SYNOXX 10G SFP+ BiDi Transceiver Pair EB23X-10D/EB32X-10D LC 10km
The SYNOXX EB23X-10D/EB32X-10D is a matched 10G SFP+ BiDi transceiver pair enabling
bidirectional 10Gbps transmission over a single strand of single-mode fiber up to 10km,
using complementary wavelengths of 1270nm TX/1330nm RX and 1330nm TX/1270nm RX.
Supports data rates up to 10Gbps with Digital Diagnostic Monitoring (DDM), DFB
transmitter, APD receiver, and power consumption of ≤1.5W per module, compliant with
IEEE 802.3ae and SFP+ MSA standards. Hot-pluggable, RoHS compliant, and IC Certified.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX EB23X-10D/EB32X-10D is a matched 10G SFP+ BiDi transceiver pair engineered for bidirectional 10Gbps transmission over a single strand of single-mode fiber up to 10km. Using complementary wavelengths — 1270nm TX/1330nm RX on one module and 1330nm TX/1270nm RX on the other — the pair enables full-duplex 10G communication over a single LC fiber strand, cutting fiber infrastructure requirements in half for data centre, enterprise, and telecom deployments. This product is sold as a matched pair and both modules are required for correct operation.
Supporting data rates up to 10Gbps and compliant with IEEE 802.3ae and SFP+ MSA standards, each module features a DFB laser transmitter and APD receiver for stable, high-sensitivity long-distance performance. Full Digital Diagnostic Monitoring (DDM) provides real-time visibility into temperature, voltage, TX/RX optical power, and bias current. Power consumption is ≤1.5W per module, with an operating temperature range of 0°C to 70°C and a standard LC simplex connector.
IC Certified by Industry Canada (ISED), the EB23X-10D/EB32X-10D meets regulatory requirements for commercial deployment.
- Product code
- EB23X-10D / EB32X-10D
- Tested ambient temperature
- 0 to +70°C
- Connector
- LC
- Data Rate
- 10G
- Distance
- 10KM
- Format
- SFP+
- Wavelength
- 1270nm Tx / 1330nm Rx
- Fiber Type
- SM
- DDM
- Yes
