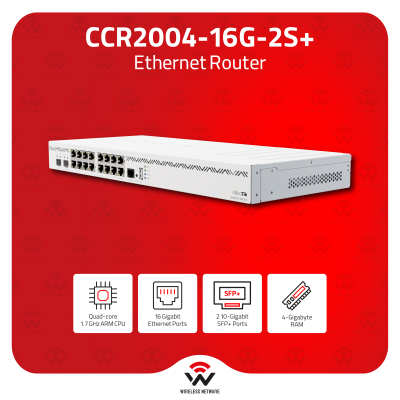

MikroTik CCR2004-16G-2S+ Quad-Core 10G RouterOS L6

The CCR2004-16G-2S+ (product code: CCR2004-16G-2S+) is the Gigabit-focused member of MikroTik's CCR2004 router family, distinguished within the series by its emphasis on single-core CPU performance. The Annapurna Labs AL32400 processor operates at 1700 MHz across four ARM 64-bit cores (four threads), paired with 4 GB of RAM and 128 MB of NAND flash storage. This combination delivers strong performance across demanding RouterOS workloads including complex multi-rule firewall policies, BGP/OSPF routing tables, and deep packet inspection.

The 16× 10/100/1000 Mbps Gigabit Ethernet ports — managed by the 88E6191X switch chip — provide high-density LAN or WAN connectivity suited to medium and large enterprise edge or aggregation deployments. The two SFP+ slots accept 1G or 10G SFP modules, serving as uplinks to a distribution switch, core router, or ISP hand-off point. Ethernet test results show routing throughput of up to 35.5 Gbps (fast path, 1518-byte frames) across all ports simultaneously.

IPsec performance is a particular strength of the AL32400 platform. Testing with 256 tunnels using AES-128-CBC + SHA1 at 1400-byte packets yields approximately 2.6 Gbps — making the CCR2004-16G-2S+ a capable VPN concentrator for organisations running large numbers of site-to-site or remote access tunnels. The same throughput holds across AES-256-CBC cipher variants, indicating hardware-assisted crypto acceleration.

Power resilience is provided by two hot-swap PSU slots, accepting a wide AC input range of 100–240 V at 50–60 Hz. Either PSU can be removed and replaced under load without interrupting operation. Maximum power consumption is 48 W under full load (35 W without SFP attachments), with cooling handled by two active fans. A single USB port is available for storage or configuration use, along with an RJ45 serial console port for out-of-band management. CPU temperature, PCB temperature, and voltage monitors are included. IP20 indoor rating applies.

The unit ships with rack ears, two IEC power cords, and a K-57 kit, and is dimensioned at 443 × 210 × 44 mm for standard 1U rack installation. Certifications include CE, EAC, and RoHS, with an MTBF of approximately 200,000 hours at 25 °C.

Key Specifications at a Glance

• Product Code: CCR2004-16G-2S+
• Architecture: ARM 64-bit
• CPU: Annapurna Labs AL32400, Quad-Core @ 1700 MHz
• Switch Chip: 88E6191X
• RouterOS Licence: Level 6
• Operating System: RouterOS v7
• RAM: 4 GB
• Storage: 128 MB NAND
• Gigabit Ethernet Ports: 16× 10/100/1000 Mbps
• SFP+ Ports (1G/10G): 2×
• Serial Console Port: RJ45
• USB Port: 1×
• Power Inputs: 2× AC (100–240 V, 50–60 Hz), dual hot-swap PSU slots
• Max Power Consumption: 48 W (35 W without attachments)
• Cooling: 2 active fans
• IP Rating: IP20
• Operating Temperature: -20 °C to 60 °C
• Dimensions: 443 × 210 × 44 mm
• MTBF: ~200,000 hours at 25 °C
• Certifications: CE, EAC, RoHS
• Included: Rack ears, 2× IEC power cords, K-57 kit
