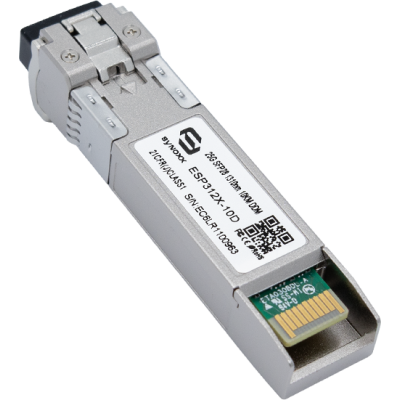

SYNOXX 25G SFP28 LR Transceiver ESP312X-10D LC 10km
The SYNOXX ESP312X-10D is a 25G SFP28 LR optical transceiver delivering 25.78Gbps
transmission over single-mode fiber (SMF) up to 10km using a 1310nm DFB laser
transmitter and PIN receiver — engineered for 25G long-reach data centre
interconnects, metro-edge telecom links, campus backbone 25G fiber uplinks, and
5G CPRI fronthaul over extended SMF distances. Features Digital Diagnostic Monitoring
(DDM) via I2C for real-time temperature, voltage, TX/RX power, and bias current
monitoring, compliant with SFP28 MSA, IEEE 802.3cc, and SFF-8472 standards, with
low power consumption and a standard LC duplex connector. Hot-pluggable, RoHS
compliant, and IC Certified.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX ESP312X-10D is a 25G SFP28 LR optical transceiver engineered for 25.78Gbps transmission over single-mode fiber up to 10km. Powered by a 1310nm DFB (Distributed Feedback) laser transmitter with PIN receiver, the ESP312X-10D delivers stable, long-reach 25G optical performance on OS2 single-mode fiber — the module of choice for 25G long-reach data center interconnects, metro-edge telecom infrastructure, campus backbone fiber uplinks, and 5G CPRI fronthaul links where multimode fiber reach is insufficient and 25G throughput is required.
Compliant with SFP28 MSA, IEEE 802.3cc, and SFF-8472 standards, the ESP312X-10D supports full Digital Diagnostic Monitoring (DDM) via I2C interface for real-time visibility into temperature, voltage, TX/RX optical power, and bias current. Fully hot-pluggable in the standard SFP28 form factor with an LC duplex connector and low power consumption, it delivers broad cross-vendor compatibility across the full range of 25G SFP28-equipped switching, routing, and server infrastructure.
IC Certified by Industry Canada (ISED), the ESP312X-10D meets regulatory requirements for commercial deployment.
- Product code
- ESP312X-10D
- Tested ambient temperature
- 0 to +70°C
- Connector
- LC
- Data Rate
- 25G
- Distance
- 10KM
- Format
- SFP28
- Wavelength
- 1310nm
- Fiber Type
- SM
- DDM
- Yes
