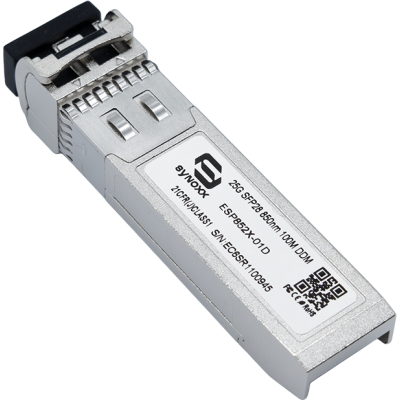

SYNOXX 25G SFP28 SR Transceiver ESP852X-01D LC 100m
The SYNOXX ESP852X-01D is a 25G SFP28 SR optical transceiver delivering 25.78Gbps
transmission over multimode fiber — up to 100m on OM4, 70m on OM3, and 20m on OM2
— using an 850nm VCSEL laser and PIN photodiode, purpose-built for high-density 25G
Ethernet switching, 5G CPRI fronthaul, and 100G breakout target deployments.
Features a hot-pluggable SFP28 form factor, LC duplex connector, and Digital
Diagnostic Monitoring (DDM) via SFF-8472, with low power consumption and compliance
with IEEE 802.3cc and SFF-8402 standards. Hot-pluggable, RoHS compliant, and IC
Certified.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX ESP852X-01D is a 25G SFP28 SR optical transceiver engineered for 25.78Gbps transmission over multimode fiber — delivering up to 100m on OM4, 70m on OM3, and 20m on OM2. Using an 850nm VCSEL laser transmitter and PIN photodiode receiver, it supports high-density 25G Ethernet switching, 5G CPRI fronthaul between baseband units (BBU) and remote radio heads (RRH), and 100G breakout target applications when paired with a QSFP28-to-4×SFP28 breakout cable — making it the 25G multimode fiber module for the widest range of modern data centre, enterprise, and wireless infrastructure deployments.
Compliant with IEEE 802.3cc and SFF-8402 standards, the ESP852X-01D features full Digital Diagnostic Monitoring (DDM) via SFF-8472 for real-time visibility into temperature, voltage, TX/RX optical power, and bias current. Its hot-pluggable SFP28 form factor with LC duplex connector delivers broad cross-vendor compatibility across all SFP28-equipped 25G switches, routers, and servers, with low power consumption and an operating temperature range of 0°C to 70°C.
IC Certified by Industry Canada (ISED), the ESP852X-01D meets regulatory requirements for commercial deployment.
- Product code
- ESP852X-01D
- Tested ambient temperature
- 0 to +70°C
- Connector
- LC
- Data Rate
- 25G
- Distance
- 100M
- Format
- SFP28
- Wavelength
- 850nm
- Fiber Type
- MMF
- DDM
- Yes
