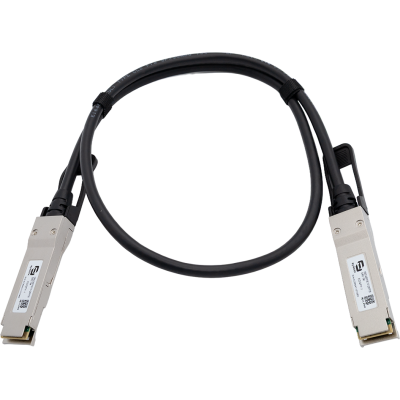

SYNOXX 100G QSFP28 DAC Cable EDQPY-1 QSFP28 1m
The SYNOXX EDQPY-1 is a 100G QSFP28 to QSFP28 passive direct attach copper (DAC)
cable delivering 100Gbps data transfers over a 1-metre twinax connection using a
4×25G lane architecture — the ideal same-rack interconnect for 100G spine-leaf
switching environments. Compliant with SFF-8636 and IEEE 802.3bj, featuring a
two-wire I2C interface for monitoring and control, low crosstalk, and power
consumption under 1.5W per end. Hot-pluggable, RoHS compliant, and IC Certified.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX EDQPY-1 is a 100G QSFP28 to QSFP28 passive direct attach copper (DAC) cable engineered for short-range 100Gbps connectivity in same-rack and top-of-rack 100G switching environments. Built on a 4×25G lane architecture, it delivers 100Gbps aggregate throughput over a 1-metre passive twinax cable — eliminating the cost and complexity of active optical transceivers for the tightest rack configurations in high-density data centre and enterprise core switching deployments.
Compliant with SFF-8636 and IEEE 802.3bj standards, the EDQPY-1 features a two-wire I2C interface for real-time monitoring and control, low crosstalk design for stable signal integrity in dense 100G environments, and power consumption under 1.5W per end. Fully hot-pluggable with a standard QSFP28 form factor, it operates across a temperature range of 0°C to 70°C on a single +3.3V power rail.
IC Certified by Industry Canada (ISED), the EDQPY-1 meets regulatory requirements for commercial deployment.
- Product code
- EDQPY-1
- Connector
- QSFP28 to QSFP28
- Data Rate
- 100G
- Distance
- 1M
- Standards
- SFF-8636, IEEE 802.3bj
