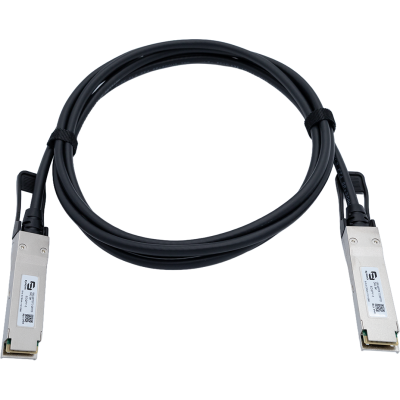

SYNOXX 100G QSFP28 DAC Cable EDQPY-3 QSFP28 3m
The SYNOXX EDQPY-3 is a 100G QSFP28 to QSFP28 passive direct attach copper (DAC)
cable delivering 100Gbps over a 3-metre twinax connection using a 4×25G lane
architecture — purpose-built for cross-rack and adjacent-rack 100G connections where
1-metre cables fall short. Compliant with SFF-8636 and IEEE 802.3bj, featuring a
two-wire I2C interface for monitoring and control, low crosstalk design, and power
consumption under 1.5W per end. Hot-pluggable, RoHS compliant, and IC Certified.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX EDQPY-3 is a 100G QSFP28 to QSFP28 passive direct attach copper (DAC) cable delivering 100Gbps connectivity over 3 metres of twinax copper — designed for cross-rack and adjacent-rack 100G connections where 1-metre cables cannot reach. Built on a 4×25G lane architecture, it bridges QSFP28-equipped switches, servers, and storage arrays across rack boundaries without the cost or complexity of active optical cables or pluggable transceivers in short-to-medium distance 100G environments.
Compliant with SFF-8636 and IEEE 802.3bj standards, the EDQPY-3 features a two-wire I2C interface for real-time monitoring and control, low crosstalk performance for signal integrity across the full 3-metre run, and power consumption under 1.5W per end. Fully hot-pluggable with a standard QSFP28 form factor, it operates across a temperature range of 0°C to 70°C on a single +3.3V power rail.
IC Certified by Industry Canada (ISED), the EDQPY-3 meets regulatory requirements for commercial deployment.
- Product code
- EDQPY-3
- Connector
- QSFP28 to QSFP28
- Data Rate
- 100G
- Distance
- 3M
- Standards
- SFF-8636, IEEE 802.3bj
