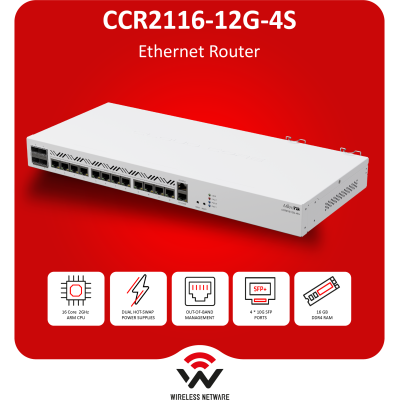

MikroTik CCR2116-12G-4S+ 16-Core 10G ISP Edge Router
The MikroTik CCR2116-12G-4S+ is a 1U rack-mount ISP edge router — Amazon Annapurna Labs AL73400 16-core ARM64 at 2,000 MHz, Marvell Aldrin 98DX3255 switch chip (L3 hardware offloading, 4× 10G CPU lines), 16 GB DDR4 RAM, 128 MB NAND, 1× M.2 PCIe slot, RouterOS v7 License 6, 12× GbE (switch chip) + 1× GbE (direct CPU management), 4× SFP+ (10G), RJ45 serial console, 2× AC PSU (100–240V, 47–63 Hz), 4 fans, 83W max / 60W without attachments, CPU + PCB + voltage monitors, mode button, 443 × 199 × 44 mm, -20°C to +60°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Includes 2× IEC cord, rack bracket, K-57 kit. USD 995.00.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CCR2116-12G-4S+ is MikroTik's mid-tier ISP edge router at USD 995.00 — the same 16-core AL73400 ARM64 CPU as the flagship CCR2216, paired with Marvell Aldrin 98DX3255 switch chip and four 10G SFP+ uplinks. MikroTik's own benchmark: double the performance of the 36-core CCR1036, 6× faster BGP than previous CCR generation, 15%+ single-core improvement versus the CCR2004.
**AL73400 — 16-core ARM64 at 2,000 MHz + 16 GB DDR4**
Same CPU as the CCR2216 flagship — 16 cores at 2,000 MHz, 16 GB DDR4 RAM, full RouterOS v7 License 6. MikroTik's stated benchmark: sets "a new standard of single-core performance in the whole CCR product family." Per-connection processing workloads — queues, complex firewall rules, IPsec, BGP full internet table — benefit most from single-core speed improvements.
**98DX3255 + L3 hardware offloading — switch-like throughput**
Each group of 4 GbE ports has a dedicated full-duplex connection to the 98DX3255 switch chip — no shared bottleneck across port groups. L3 hardware offloading routes IP traffic in the switch chip without CPU involvement. 4× 10G SFP+ ports connect via a separate, dedicated full-duplex line to the switch chip.
**1× M.2 PCIe slot — expandable storage**
One M.2 PCIe slot for additional storage — directly relevant for RouterOS container workloads, BGP RIB logging, and traffic analysis data retention.
**Dual redundant PSU — ISP-grade reliability**
Two hot-swap AC PSU slots (100–240V, 47–63 Hz) with 4 fans. 83W max, 60W without attachments.
**Canadian market note:** CE, EAC, RoHS only — no FCC, no IC (ISED). Wired router, no wireless transmitter. Confirm CSA/cUL electrical safety with distributor before listing.
**5-year software support guarantee:** RouterOS v7 updates free for minimum 5 years from purchase.
- Product code
- CCR2116-12G-4S+
- Architecture
- ARM 64bit
- CPU core count
- 16
- CPU nominal frequency
- 2000 MHz
- Operating System
- RouterOS (v7 only)
- Size of RAM
- 16 GB
- Storage size
- 128 MB
- Storage type
- NAND
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -20°C to 60°C
- Max Power consumption
- 72 W
- Max power consumption without attachments
- 60 W
- 10/100/1000 Ethernet ports
- 13
- Number of AC inputs
- 2
- AC input range
- 100-240
- M.2 slots
- 1
- CPU temperature monitor
- YES
- PCB temperature monitor
- YES
- Certification
- CE, EAC, ROHS
- Mode button
- YES
