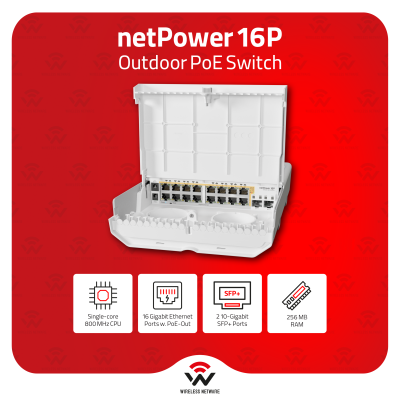

MikroTik netPower 16P Outdoor 16-Port PoE Switch
The MikroTik netPower 16P (CRS318-16P-2S+OUT) is a compact outdoor 18-port dual-boot PoE switch — 98DX226S dual-core ARM 32-bit at 800 MHz, 256 MB RAM, 16 MB flash, RouterOS v7 License 5 or SwitchOS, 16× GbE 802.3af/at PoE-out (Ether1–16) + 2× SFP+ 10G, 36 Gbps non-blocking throughput, 72 Gbps switching capacity, 53.6 Mpps forwarding rate, dual DC jack input (18–30V or 48–57V), 316W max / 16W without attachments, no onboard voltage converter, passive cooling, IP54, 303 × 212 × 78 mm, -40°C to +70°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Includes K-66 fastening set, 2× hose clamps, 2× DC to terminal block adapters. Power supply NOT included.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik netPower 16P is a compact outdoor dual-boot PoE switch — 16× GbE 802.3af/at PoE-out and 2× SFP+ 10G in an IP54 enclosure deployable on towers, masts, poles, attics, and shafts, running RouterOS v7 License 5 or SwitchOS.
**16× GbE 802.3af/at PoE-out — power APs and cameras at the mast**
All 16 GbE ports deliver 802.3af/at PoE-out — power access points, IP cameras, and IP phones directly at the tower or pole without running separate power cables to each device. No onboard voltage converter — the output voltage equals the input voltage. Connect a 24V PSU for 24V passive PoE-out; connect a 48V PSU for 802.3af/at 48V PoE-out. Max total output: 2.8A per input at 18–30V and 1.4A per input at 48–57V across 2 DC jack inputs. Compatible MikroTik PSUs: 24HPOW, MTP250-53V47-OD, MTP250-26V94-OD, 48POW, 48V2A96W. Power supply NOT included.
**36 Gbps non-blocking throughput — 72 Gbps switching capacity**
98DX226S dual-core ARM 32-bit at 800 MHz — 36 Gbps non-blocking throughput, 72 Gbps switching capacity, 53.6 Mpps forwarding rate. Sufficient for simultaneous full-rate GbE and 10G SFP+ traffic without oversubscription.
**Dual boot — RouterOS L5 or SwitchOS**
Boot into SwitchOS for lightweight web-managed Layer 2 switching, or RouterOS v7 License 5 for full Layer 3 routing, firewall, NAT, and scripting. Both OSes preinstalled and licensed. Free software updates for the life of the product or minimum 5 years from purchase.
**IP54 outdoor enclosure — tower, mast, pole, attic, shaft**
IP54 rated. K-66 fastening set and 2× hose clamps included for pole and mast mounting. 2× DC to terminal block adapters included.
**Canadian market note:** CE, EAC, RoHS only — no FCC, no IC. Wired switch, no wireless transmitter — no ISED wireless type approval required.
- Product code
- CRS318-16P-2S+OUT
- Architecture
- ARM 32bit
- CPU core count
- 1
- CPU nominal frequency
- 800MHZ
- Operating System
- RouterOS/SwitchOS
- Size of RAM
- 256MB
- Storage size
- 16MB
- Storage type
- FLASH
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 2 (DC jack)
- DC jack input Voltage
- 18-57 V
- Max Power consumption
- 316 W
- Max power consumption without attachments
- 16 W
- PoE out
- Ether1-Ether16, 802.3af/at
- Max out per port output (input more than 30 V)
- 0.6A
1.1A - Max total out (A)
- 2.8A (24V) & 1.4A (48V-57V) x2 A A
- 10/100/1000 Ethernet ports
- 16
- Dimensions
- 303 x 212 x 78 mm
- CPU temperature monitor
- YES
- Voltage Monitor
- YES
- Certification
- CE/RED, EAC, ROHS
- Number of 1G Ethernet ports
- 16
