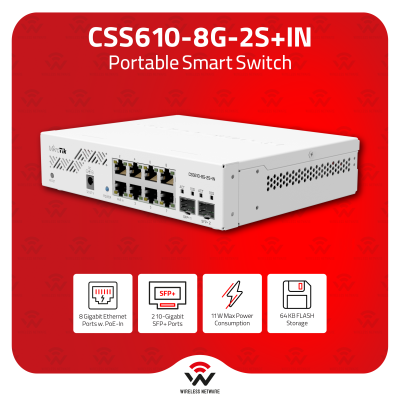

MikroTik CSS610-8G-2S+IN 8-Port GbE 10G SFP+ Switch
The MikroTik CSS610-8G-2S+IN is a compact 10-port Layer 2 managed switch — 88E6393X switch chip, 8× GbE + 2× SFP+ 10G, 20 Gbps full-duplex switching capacity, SwOS web management interface, 1× RJ45 serial console, passive cooling, desktop or rackmount (1U with SFP+ ports facing rear), DC jack (24–57V) or 802.3af/at PoE-in on Ether1, 7.5W max without attachments, 175 × 110 × 28 mm, -40°C to +70°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Non-PoE variant of the CSS610-8P-2S+IN. Includes 24V 1A power adapter and K-55 screw set. USD 99.00.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CSS610-8G-2S+IN is a compact 10-port Layer 2 managed switch at USD 99.00 — 8× GbE and 2× SFP+ 10G ports managed via SwOS, in a passively cooled 175 × 110 × 28 mm enclosure deployable on a desktop or in a 1U rack with SFP+ ports facing rear.
**88E6393X switch chip — 20 Gbps full-duplex**
The Marvell 88E6393X switch chip drives all 10 ports at line rate — 20 Gbps full-duplex switching capacity with no oversubscription on GbE ports. Two SFP+ 10G cages connect upstream to core switches, routers, or NAS devices at 10G. The same switch chip used in the RB5009UG+S+IN and CCR2004-16G-2S+ — consistent VLAN, trunk, and spanning tree behaviour across the MikroTik product line.
**SwOS — web-managed Layer 2**
SwOS provides VLAN, port isolation, port mirroring, trunk groups, spanning tree (STP/RSTP), bandwidth limiting, and per-port statistics via a browser-based interface — no CLI required for standard configuration. RouterOS is not installed and is not available on this device.
**PoE-in on Ether1 — flexible power sourcing**
Powers from DC jack (24–57V) or 802.3af/at PoE-in on Ether1 — deployable without a separate power adapter when a PoE uplink is available. 7.5W max without attachments.
**Non-PoE variant — CSS610-8P-2S+IN**
The CSS610-8G-2S+IN has no PoE output. For deployments requiring PoE output to APs, cameras, or IP phones, use the CSS610-8P-2S+IN (8× PoE-out ports, same SFP+ uplinks).
**Canadian market note:** CE, EAC, RoHS only — no FCC, no IC. Wired switch, no wireless transmitter — no ISED wireless type approval required.
- Product code
- CSS610-8G-2S+IN
- Operating System
- SwOS
- Number of DC inputs
- 2 (PoE-in, DC jack)
- DC jack input Voltage
- 12-57 V
- Max Power consumption
- 11W
- Max power consumption without attachments
- 5W
- PoE in
- Passive PoE
- PoE in input Voltage
- 12-57 V
- Dimensions
- 200 x 167 x 46 mm
- Operating Temperature
- -20°C to +60°C
- chipset
- 88E6193X
- Certification
- CE, FCC, IC
- Number of 10G SFP+ ports
- 2
- Number of 1G Ethernet ports
- 8
