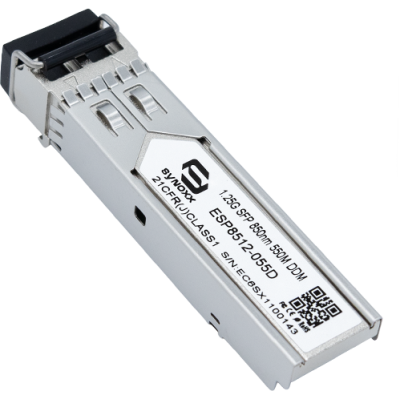

SYNOXX 1.25G SFP SX Transceiver ESP8512-055D LC 550m
The SYNOXX ESP8512-055D is a 1.25G SFP SX optical transceiver delivering Gigabit
Ethernet and Fibre Channel connectivity over multimode fiber (MMF) up to 550 metres
using an 850nm VCSEL transmitter — the standard choice for access-layer 1G fiber
links and 1G Fibre Channel connections over OM2, OM3, or OM4 multimode infrastructure.
Supports data rates up to 1.25Gbps with Digital Diagnostic Monitoring (DDM), PIN
photodetector receiver, and compliance with SFP MSA and SFF-8472 standards, with low
power consumption and a standard LC duplex connector. Hot-pluggable, RoHS compliant,
and IC Certified.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The SYNOXX ESP8512-055D is a 1.25G SFP SX optical transceiver engineered for Gigabit Ethernet and Fiber Channel connectivity over multimode fiber up to 550 meters. Operating at 850nm with a VCSEL transmitter and PIN photodetector, it delivers stable, energy-efficient optical performance over OM2, OM3, and OM4 multimode fiber infrastructure — the standard access-layer 1G fiber module for enterprise switches, storage networks, and telecommunications equipment requiring 1G optical connections up to half a kilometer.
Compliant with SFP MSA and SFF-8472 standards, the ESP8512-055D is fully hot-pluggable and supports Digital Diagnostic Monitoring (DDM) for real-time visibility into temperature, voltage, TX/RX optical power, and bias current. Its compact SFP form factor, LC duplex connector, and low power consumption make it compatible with the widest range of SFP-equipped switches, routers, and Fibre Channel HBAs across enterprise and telecommunications environments.
IC Certified by Industry Canada (ISED), the ESP8512-055D meets regulatory requirements for commercial deployment.
- Product code
- ESP8512-055D
- Connector
- LC
- Data Rate
- 1.25G
- Distance
- 550M
- Format
- SFP
- Wavelength
- 850nm
- Fiber Type
- MM
