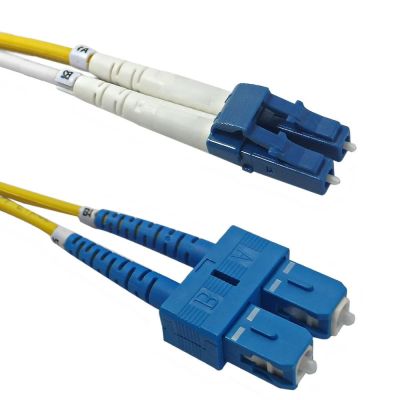

OS2 Singlemode Duplex LC/SC 9 Micron - Fiber Optic Patch Cable - 3mm Jacket - 3M
These 9 micron (OS2) fiber optic cable is made with Corning ClearCurve LBL glass fiber, which exceeds ITU-T G.657.A2/B2 and remains compatible and fully compliant with ITU-T G.652.D. It has 2mm jacket and rated riser (OFNR). They are tested to provide the optimum data transmission and network stability. They are used for connections to data center, CATV, fiber test equipment, LAN, telecommunication networks, FTTx, communication rooms and fiber optic communication system.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Physical Characteristics
Color: Yellow
Cable Diameter: 2 mm
Fiber Size: 9/125 µm
Fiber Type: Singlemode
Fiber Classification: OS2
Glass Manufacturer: Corning Glass (ClearCurve LBL)
Connector Ferrules: Ceramic
Jacket Rating: Riser (OFNR)
Operating Temperature: -20°C to +70°C
Connectors
Connector A: LC/UPC Duplex Male
Connector B: SC/UPC Duplex Male
Performance
Insertion Loss: < 0.3 dB @ 1550 nm
Return Loss: ≥ 50 dB
Interferometer Tested: 100% Tested
Approvals
c(UL)us: Compliant – Cable
Environmental
RoHS: Compliant
Conflict Minerals: Compliant
- Product code
- FOC-209-10
