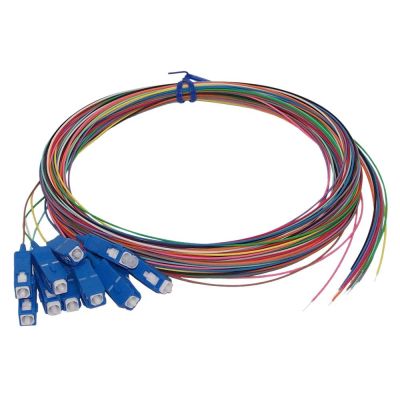

OS2 Singlemode Simplex Pigtail SC/UPC 12-Fiber (9 µm, 900 µm, Color-Coded) 3 m
These OS2 (9/125 µm) singlemode fiber optic pigtails are terminated with SC/UPC connectors on one end and left un-terminated on the other end.
The un-terminated ends are designed to be stripped and fusion-spliced to individual fibers in a multi-strand fiber trunk cable.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Physical Characteristics
Cable Length: 3 m (9.84 ft)
Color (12 fibers): Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Rose, Aqua
Cable Diameter: 900 µm
Fiber Size: 9/125 µm
Fiber Type: Singlemode
Fiber Classification: OS2
Glass Manufacturer: Corning Glass
Connector Ferrules: Ceramic
Jacket Rating: Low Smoke Zero Halogen (LSZH)
Connectors
Connector A: SC/UPC Simplex Male (1 per fiber)
Connector B: Un-terminated
Performance
Insertion Loss: ≤ 0.3 dB @ 1550 nm
Return Loss: ≥ 55 dB
Supported Speed: Up to 10 Gbps
Approvals
c(UL)us: Compliant – Cable
Environmental
RoHS: Compliant
Conflict Minerals: Compliant
- Product code
- FO-PT604-10R-12PK
