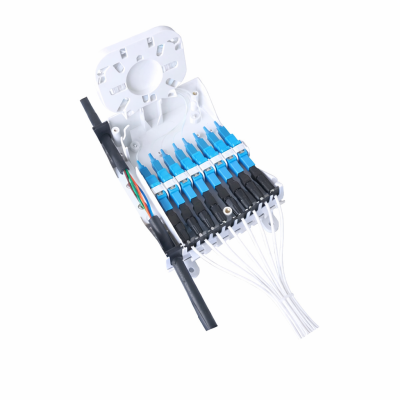

FF-FTB8G Fiber Optic Terminal Box 8 Cores
The FF-FTB8G Fiber Optic Terminal Box is used as a termination point for feeder cables to connect with drop cables or pigtails in FTTH networks.
It supports fiber splicing, splitting, and distribution while providing reliable protection and organized management for FTTH network installations.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Specifications
Product Model: FF-FTB8G
Dimensions (L × W × H): 192 × 135 × 48 mm
Installation Dimensions: 178 × 88 mm
Cable Entries
Inlet Ports: 2 ports
Outlet Ports: 8 ports (2 × 3 mm drop cable or indoor cable)
Splitter Support
PLC Splitter Types: 1×4, 1×8, 1×12, 1×16
Splitter Type: Mini steel tube / bare type
Adapter Capacity
Max. 8 pcs SC Simplex adapters
Max. 8 pcs LC Duplex adapters
Other
Material: ABS FR
Weight: 0.25 kg
IP Rating: IP65
Features
Material: ABS FR high-strength plastic, UV-resistant and weather-resistant
Supports feeder cable and drop cable clamping, fiber splicing, fixation, storage, and distribution in one unit
Dedicated routing paths for cables, pigtails, and patch cords to prevent interference and allow easy maintenance
Wall-mount installation, suitable for indoor use
Lateral pressure resistance: 500 N
Shock resistance: 750 N
Operating temperature: -40°C to +80°C
Applications
FTTH access networks
Telecommunication networks
CATV networks
Data communication networks
Local Area Networks (LAN)
- Product code
- FF-FTB8G
