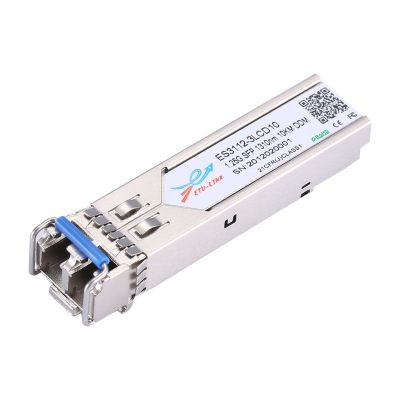

ETU 1.25G SFP LX 1310nm 10KM LC
The ES3112-3LCD10 is a high-performance 1.25G SFP LX optical transceiver designed for long-distance data transmission. It operates at a wavelength of 1310nm and supports up to 10KM over single-mode fiber with an LC connector.
This transceiver incorporates a 1310nm FP laser and PIN photo detector to ensure reliable data communication. It is compliant with the SFP MSA and SFF-8472 standards and features Digital Diagnostic Monitoring for enhanced performance tracking.
Additionally, it is compatible with SONET OC-24-LR-1, adheres to RoHS standards, and operates on a +3.3V single power supply. The device is available in both standard and industrial operating temperature ranges, making it versatile for a variety of networking environments.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The ES3112-3LCD10 optical transceiver is engineered to facilitate robust and efficient data communication over a distance of up to 10KM. With a data rate of 1.25Gbps, it is ideal for high-speed networking requirements. The transceiver utilizes a 1310nm FP laser and a PIN photo detector, ensuring optimal performance and reliability for long-distance transmissions. It is fully compliant with the SFP Multi-Source Agreement (MSA) and the SFF-8472 standard, guaranteeing compatibility with a wide range of networking equipment. The duplex LC receptacle enables easy and secure connections to single-mode fiber.
Featuring Digital Diagnostic Monitoring, the ES3112-3LCD10 allows for real-time access to device operating parameters, facilitating easier maintenance and troubleshooting. Whether you require internal calibration or external calibration, this transceiver meets your needs. It is also compatible with SONET OC-24-LR-1 standards and meets RoHS compliance for environmental sustainability. The transceiver operates efficiently with a +3.3V single power supply and offers flexible temperature ranges to accommodate standard (0 to +70°C) and industrial (-40 to +85°C) operating environments, making it a versatile choice for various applications.
- Product code
- ES3112-3LCD10
- Tested ambient temperature
- 0 to +70°C
- Connector
- LC
- Data Rate
- 1.25G
- Distance
- 10KM
- Format
- SFP
- Wavelength
- 1310nm
- Fiber Type
- SM
