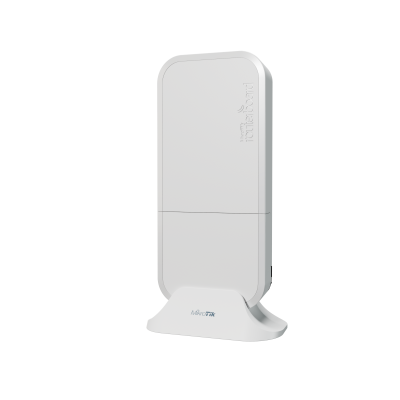

MikroTik wAP ax AX3000 Wi-Fi 6 Outdoor AP RouterOS v7

The MikroTik wAP ax is the Wi-Fi 6 generation of MikroTik's wAP platform — a product line that has shipped continuously across multiple Wi-Fi generations and built a reputation specifically for outdoor and semi-outdoor deployments where the combination of weatherproofing, compact size, mounting flexibility, and RouterOS management is difficult to match at this price point. The wAP form factor is not new — it is a tested, proven outdoor AP enclosure design with a known installation record in rural environments, public spaces, hospitality deployments, and remote commercial locations globally. The wAP ax brings Wi-Fi 6 (802.11ax) to that proven platform without changing the enclosure geometry, mounting hardware, or installation approach that the previous wAP generations established.

The AX3000 Wi-Fi 6 classification — 574 Mbps at 2.4 GHz and 2,400 Mbps at 5 GHz — is derived from the maximum data rates on each band with 2×2 MIMO clients. The 2.4 GHz Wi-Fi 6 improvement is the figure MikroTik highlights: up to 90% faster than 802.11n at 2.4 GHz under the same channel conditions. The 2.4 GHz band improvement is particularly relevant for outdoor and rural deployments where 2.4 GHz is preferred for range — 2.4 GHz propagates further than 5 GHz at the same transmit power, penetrates obstacles better, and is the band of choice for IoT devices, legacy cameras, and clients at the edge of coverage. The Wi-Fi 6 OFDMA and BSS colouring improvements on 2.4 GHz are meaningful in environments with neighbouring Wi-Fi networks — BSS colouring reduces effective co-channel interference, improving real-world throughput in congested 2.4 GHz environments.

The 5 GHz radio (QCN-6102, 2,400 Mbps max) provides the high-throughput band for clients within closer range — laptops, phones, and tablets connecting at distances where 5 GHz signal quality is sufficient. The 7 dBi antenna gain on 5 GHz (versus 6.9 dBi at 2.4 GHz) is consistent with the wAP platform's integrated antenna design — both bands benefit from above-average antenna gain relative to the physical size of the enclosure, contributing to the wAP's coverage performance in outdoor line-of-sight and near-line-of-sight conditions.

Wi-Fi 6 security across both bands: WPA3-PSK, WPA3-EAP, OWE (Opportunistic Wireless Encryption), and management frame protection. OWE is specifically relevant for the wAP ax's target deployment scenarios — rural gas stations, bus stops, campgrounds, outdoor hospitality areas, and public spaces where open Wi-Fi access is required but client session encryption is still desirable. OWE provides per-client encrypted sessions on an open SSID without requiring a password — guests connect to the open network and their traffic is encrypted without any additional configuration on the client side. For any public Wi-Fi deployment where the operator cannot or does not want to distribute a password, OWE is the correct security configuration and the wAP ax supports it natively.

CAPsMAN integration (MikroTik's wifi-qcom CAPsMAN for RouterOS v7) allows multiple wAP ax units to be managed centrally from a single RouterOS controller device. For a deployment covering a large rural property — a farm, a resort, a campground, a marina, or an outdoor event venue — where multiple wAP ax units are mounted at different coverage points, CAPsMAN manages SSID policy, security configuration, channel assignment, and roaming policy from a single controller rather than per-device configuration. Fast transition roaming (802.11r-compatible) allows client devices to move between wAP ax coverage zones without re-authentication delays — a direct improvement in client experience for users moving through a multi-AP deployment.

The two Gigabit Ethernet ports are a hardware differentiator for the wAP ax versus single-port outdoor APs in the same price range. Two Ethernet ports allow the wAP ax to be used in a pass-through wired network topology — the upstream network connection enters on Ether1 (PoE-in), and Ether2 provides a downstream wired connection to a device at the mounting location without requiring a separate switch. For a rural deployment where the wAP ax is mounted at a building entry point and a wired device (a PoS terminal, a security camera, a network switch for a small room) is co-located at the mounting point, Ether2 provides the wired downstream connection without additional hardware. The 802.3af/at PoE-in on Ether1 allows the wAP ax to be powered from a PoE switch or the included Gigabit PoE injector — a single cable from the PoE source carries both power and data to the mounting point.

The DC jack input (12–57V) provides an alternative direct power option when PoE is not available at the installation location — a 12V or 24V power supply at the mounting point powers the wAP ax directly. The included 24V 0.8A power adapter and Gigabit PoE injector provide complete out-of-box power flexibility for both input methods.

The vandalproof and discrete design is the physical characteristic MikroTik calls out specifically. The wAP ax can be wall-mounted with the fastening hardware fed through the back of the enclosure from inside the wall — the visible exterior surface is a flush-mounted enclosure with no exposed screws and no obvious cable entry points. For deployments in public spaces where equipment tampering or vandalism is a risk — bus stops, petrol stations, outdoor kiosks, public parks — the low-profile flush-mount installation reduces the visual target profile. The IP54 weatherproofing (dust-protected, splash-resistant from any direction) covers standard outdoor moisture exposure without requiring an additional enclosure.

The included mounting hardware set is the most comprehensive in this product batch — desktop stand, ceiling mount bracket, wAP mount, K-52 fastening set, hose clamp, and plastic zip tie are all included. The wAP ax supports wall mount, ceiling mount, pole mount (via hose clamp), and desktop placement (via desktop stand) without any additional hardware purchase. For a multi-site deployment where installation conditions vary — some wall mounts, some pole mounts, some ceiling mounts — the complete hardware set covers all standard scenarios out of the box.

RouterOS v7 on License 4 runs on a dual-core ARM32 IPQ-5010 at 800 MHz with 256 MB RAM and 128 MB NAND — the same CPU and memory configuration as the NetBox 5 ax. License 4 covers the access point, CAPsMAN client, VPN, firewall, and QoS use cases the wAP ax is designed for. Software updates are included for the life of the product, guaranteed minimum 5 years from purchase.

Maximum power consumption is 9W — the same as the NetBox 5 ax — making the wAP ax one of the lowest-power dual-band Wi-Fi 6 APs in the MikroTik outdoor product line. A single 802.3af switch port (15.4W rated, 12.95W at device) powers the wAP ax with headroom to spare. For multi-unit deployments powered from a central PoE switch, the 9W per-unit draw allows a standard 802.3af switch to power multiple wAP ax units without requiring 802.3at or 802.3bt per port.

**Canadian market note:** The wAP ax carries CE, FCC, IC, EAC, and RoHS certifications — the complete certification set including IC (ISED) and FCC, with FCC Grants of Certification for both 2.4 GHz and 5 GHz published on the product page. **No Canadian certification advisory is required.** List with full confidence for the Canadian market. This is one of three fully IC-certified active Wi-Fi devices in this product batch alongside the Groove 52 and Chateau PRO ax.

Key specifications:

- **Wi-Fi 2.4 GHz:** 802.11b/g/n/ax, Wi-Fi 6, 2-chain, 574 Mbps max, 6.9 dBi, IPQ-5010

- **Wi-Fi 5 GHz:** 802.11a/n/ac/ax, Wi-Fi 6, 2-chain, 2,400 Mbps max, 7 dBi, QCN-6102

- **Wi-Fi speed class:** AX3000

- **Wi-Fi security:** WPA3-PSK, WPA3-EAP, OWE, management frame protection

- **Ethernet:** 2× 10/100/1000 Mbps Gigabit Ethernet

- **PoE-in:** 802.3af/at, 18–57V (Ether1)

- **DC jack input:** 12–57V

- **Max power consumption:** 9W

- **Cooling:** Passive

- **CPU:** IPQ-5010, dual-core ARM32, 800 MHz

- **RAM:** 256 MB

- **Storage:** 128 MB NAND

- **OS:** RouterOS v7, License 4

- **IP rating:** IP54

- **Operating temperature:** -40°C to +70°C

- **MTBF:** ~100,000 hours at 25°C

- **Monitors:** CPU temperature, PCB temperature, voltage

- **Certifications:** CE, FCC, IC, EAC, RoHS — fully IC-certified for Canadian sale

- **Included:** 24V 0.8A power adapter, Gigabit PoE injector, desktop stand, ceiling mount bracket, wAP mount, K-52 fastening set, hose clamp (1), plastic zip tie

- **Product code:** wAPG-5HaxD2HaxD

- **Suggested price:** USD 89.00

Note: ARM 32-bit architecture — not ARM 64-bit. Two Gigabit Ethernet ports — Ether1 is PoE-in; confirm Ether2 pass-through wired capability in RouterOS configuration before deployment. Dimensions and weight not published on product page — confirm from brochure.
