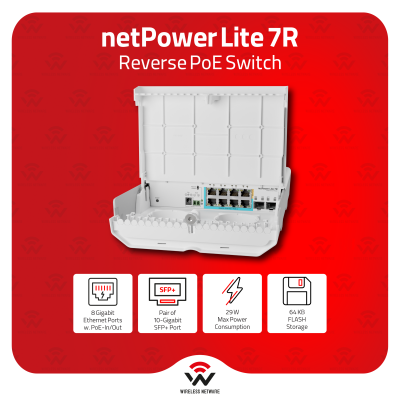

MikroTik netPower Lite 7R Outdoor Reverse PoE Switch
The MikroTik netPower Lite 7R (CSS610-1Gi-7R-2S+OUT) is an outdoor reverse PoE switch designed for MikroTik's GPEN concept — Marvell 88E6193X switch chip, SwitchOS Lite, 8× GbE (7× reverse PoE-in 12–57V passive + 1× passive PoE-out) + 2× SFP+ 10G, 28 Gbps non-blocking throughput, 56 Gbps switching capacity, 41.7 Mpps forwarding rate, triple power input (DC jack, passive PoE-in, 2-pin terminal, all 12–57V), 29W max / 7W without attachments, passive cooling, IP54, 303.5 × 211.9 × 71.3 mm, -40°C to +70°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Includes K-66 fastening set and 2× hose clamps. Power supply not included.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik netPower Lite 7R is an outdoor reverse PoE switch built for MikroTik's GPEN concept — a low-cost ISP last-mile Ethernet alternative to GPON, delivering fibre-speed connectivity to individual apartments without GPON base stations or optical splitters.
**Reverse PoE — the switch draws power from clients**
7 of the 8 GbE ports are reverse PoE inputs — the switch draws its operating power directly from connected client devices over Ethernet, eliminating the need to run a separate power cable to the switch location. A single powered client is sufficient to power the unit. Ether8 provides passive PoE-out (12–57V passthrough) to power a downstream PoE-capable device at the same voltage applied to the unit.
**Triple power input — DC jack, passive PoE-in, 2-pin terminal**
All three inputs accept 12–57V — deployable from any passive PoE source, DC adapter, or 2-pin terminal block. 29W max consumption, 7W without attachments. Power supply is NOT included — must be purchased separately.
**IP54 outdoor enclosure — attics, elevator shafts, poles**
IP54 rated — dust-protected and splash-resistant. MikroTik's own framing: suitable for damp attics, elevator shafts, and pole mounting with hose clamps. K-66 fastening set and 2× hose clamps included.
**28 Gbps non-blocking throughput**
Marvell 88E6193X switch chip — 28 Gbps non-blocking throughput, 56 Gbps switching capacity, 41.7 Mpps forwarding rate. Managed via SwitchOS Lite.
**Canadian market note:** CE, EAC, RoHS only — no FCC, no IC. Wired switch, no wireless transmitter — no ISED wireless type approval required.
- Product code
- CSS610-1Gi-7R-2S+OUT
- Operating System
- SwOS
- Tested ambient temperature
- -40°C to +70°C tested
- Number of DC inputs
- 9 (7x PoE-in, 2-pin terminal, DC jack)
- DC jack input Voltage
- 12-57 V
- Max Power consumption
- 29 W
- Max power consumption without attachments
- 7 W
- PoE in
- Passive PoE
- PoE in input Voltage
- 12-57 V
- PoE out
- Ether8
- Max out per port output - input (less than 30 V)
- 600 mA
- Max out per port output (input more than 30 V)
- 450 mA
- Dimensions
- 304 x 212 x 71 mm
- 2-pin terminal input Voltage
- 12-57 V
- Certification
- FCC, IC, CE
- Number of 10G SFP+ ports
- 2
- Number of 1G Ethernet ports
- 8
