MikroTik S+2733LC10D 10G SFP+ BiDi Transceiver Pair LC 10km
A pair of industrial-grade 10G SFP+ BiDi modules for single-mode links up to 10 km over a single fiber strand. By transmitting and receiving on split wavelengths (1270/1330 nm), the pair delivers efficient long-distance connectivity while halving fiber requirements. Built-in DDM monitors optical power, voltage, temperature, and laser bias current in real time.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik S+2733LC10D is a pair of reliable, industrial-grade 10G SFP+ modules designed for single-mode links up to 10 km. By transmitting and receiving on different wavelengths over a single fiber strand, these modules provide efficient long-distance connectivity while reducing fiber requirements.

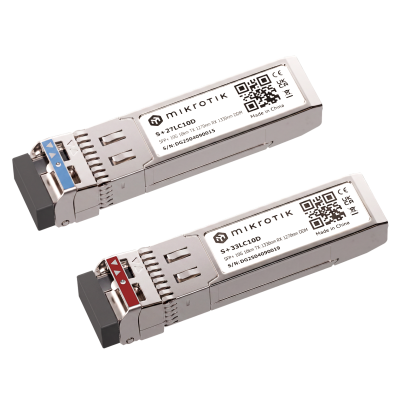

The pair consists of two complementary modules:
- S+27LC10D: TX 1270 nm / RX 1330 nm
- S+33LC10D: TX 1330 nm / RX 1270 nm
Each module pairs with the other across a single fiber, so one strand carries both directions.
The modules include built-in digital diagnostics (DDM) for monitoring optical power, voltage, temperature, laser bias current, and other key parameters. These functions help detect abnormal activity or flag when customizable operating limits are exceeded, making it easier to plan ahead, make informed decisions, and schedule upgrades or maintenance based on real performance data.
Specifications
- Product code: S+2733LC10D (pair)
- Format: SFP+
- Connector: Duplex LC (BiDi, single fiber)
- Mode: Single mode (SMF)
- Data rate: 10G
- Wavelengths: 1270 nm + 1330 nm
- Distance: Up to 10 km
- Transmitter output power: -8.2 to +0.5 dBm
- Receiver sensitivity (OMA): -14.4 dBm
- Digital diagnostics: DDM supported
- Product code
- S+2733LC10D
- Connector
- Duplex LC (BiDi, single fiber)
- Data Rate
- 10G
- Distance
- 10 km
- Format
- SFP+
- Mode
- Single mode (SMF)
- Wavelength
- 1270 nm + 1330 nm
- DDM
- supported
