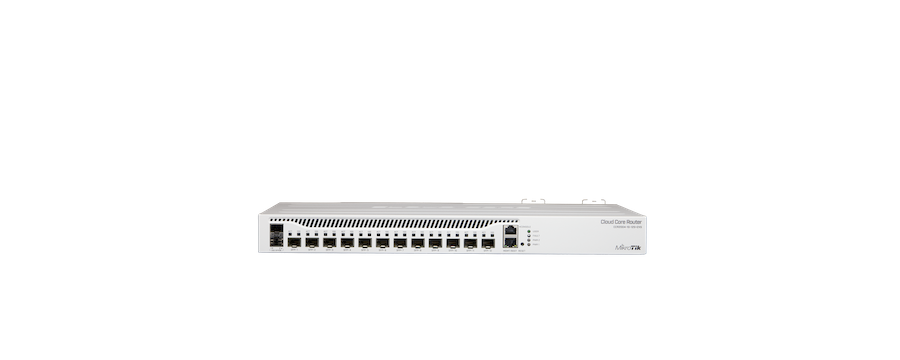

CCR Series

The MikroTik CCR2216-1G-12XS-2XQ is MikroTik's flagship cloud core router — Amazon Annapurna Labs AL73400 16-core ARM64 at 2,000 MHz, Marvell Prestera Aldrin2 98DX8525 switch chip (L3 hardware offloading, 4× 25G CPU lines), 16 GB DDR4 RAM, 128 MB NAND, 2× M.2 SATA slots, RouterOS v7 License 6, 12× SFP28 (25G), 2× QSFP28 (100G), 1× GbE, RJ45 serial console, 2× hot-swap AC PSU (100–240V, 50–60 Hz), 4× hot-swap fans, 128W max / 80W without attachments, CPU + PCB + voltage monitors, IP20, -20°C to +60°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Includes 2× IEC cord, rack ears, cable management brackets, K-82 fastening set. USD 2,795.00.

The MikroTik CCR2116-12G-4S+ is a 1U rack-mount ISP edge router — Amazon Annapurna Labs AL73400 16-core ARM64 at 2,000 MHz, Marvell Aldrin 98DX3255 switch chip (L3 hardware offloading, 4× 10G CPU lines), 16 GB DDR4 RAM, 128 MB NAND, 1× M.2 PCIe slot, RouterOS v7 License 6, 12× GbE (switch chip) + 1× GbE (direct CPU management), 4× SFP+ (10G), RJ45 serial console, 2× AC PSU (100–240V, 47–63 Hz), 4 fans, 83W max / 60W without attachments, CPU + PCB + voltage monitors, mode button, 443 × 199 × 44 mm, -20°C to +60°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Includes 2× IEC cord, rack bracket, K-57 kit. USD 995.00.

The MikroTik CCR2004-1G-12S+2XS is a 1U rackmount cloud core router — AL32400 quad-core ARM64 at 1,700 MHz, 4 GB ECC RAM, 128 MB NAND flash, RouterOS v7 License 6, 1× GbE + 12× SFP+ 10G + 2× SFP28 25G, RJ45 serial console, dual redundant AC input (100–240V, 2× IEC cords), 60W max / 31W without attachments, 2 fans, IP20, 443 × 224 × 44 mm, -20°C to +60°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Highest single-core performance in the CCR2004 family — up to 3.4 Gbps single IPsec tunnel, strong BGP feed processing. Includes 2× IEC cords, K10 screw and feet kit, rackmount bracket. Free software updates for life of product or minimum 5 years from purchase.

The MikroTik CCR2004-16G-2S+PC is a passively cooled cloud core router — quad-core ARM64 Amazon Annapurna Labs AL32400 (Alpine v2) at 1.2 GHz, 2× Marvell 88E6191 switch chips, 4 GB DDR4 RAM, 128 MB NAND, RouterOS v7 License 6, 16× Gigabit Ethernet (2× groups of 8, each with dedicated 10G CPU uplink), 2× SFP+ (10G), RJ45 serial console, 1× USB, 2× DC inputs (DC jack + 2-pin terminal, 36–57V), 36W max / 30W without attachments, fully passive cooling, IP20, -20°C to +60°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. Includes rack ears, 48V 0.95A adapter, K-83 kit. USD 465.00.

The MikroTik CCR2004-16G-2S+ is a powerful 1U rack-mount router built on the Annapurna Labs AL32400 quad-core ARM64 processor running at 1700 MHz with 4 GB of RAM, making it the strongest single-core performer in the CCR2004 series. It provides 16× Gigabit Ethernet ports and 2× 10G SFP+ ports, runs RouterOS v7 with a Level 6 licence, and features dual hot-swap PSU slots accepting 100–240 V AC — giving it full power redundancy for mission-critical deployments. With IPsec hardware acceleration reaching up to 2.6 Gbps and routing throughput of up to 35 Gbps at 1518-byte frames, it is suited to ISPs, enterprise networks, and data centres requiring a high-performance, versatile router at an accessible price point.

The MikroTik CCR2004-1G-2XS-PCIe is a unique PCIe network interface card that embeds a complete, fully licensed RouterOS router directly inside a server. Installed into a standard PCIe slot, it presents itself to the host as a network interface while simultaneously running RouterOS v7 on its own dedicated quad-core ARM64 AL52400 processor running at 1500 MHz with 4 GB of RAM. The card provides 1× Gigabit Ethernet and 2× 25G SFP28 ports, and can operate in two modes: a standard RouterOS mode for full routing, firewall, and VPN functionality, or a Passthrough mode for near-transparent, wire-speed bridging at up to 100 Gbps with Jumbo frames. Supported on Linux hosts and RouterOS hosts, it is aimed for those who want to add powerful router capabilities to an existing server.

The MikroTik XQ+CM0000-XS+ is a QSFP28 to SFP28 form-factor converter — a passive adapter that allows any SFP / SFP+ / SFP28 module (1G / 10G / 25G) to be inserted into a QSFP28 100G/40G port, enabling the use of existing SFP28 transceivers and DAC cables in QSFP28 port-equipped switches without a separate SFP28 switch layer. Tested ambient temperature -20°C to +85°C, MTBF ~100,000 hours at 25°C. No certifications published. The correct port-conversion accessory for CRS504-4XQ-IN, CRS518-16XS-2XQ-RM, CRS510-8XS-2XQ-IN, and any MikroTik or third-party switch with QSFP28 ports where existing SFP28 25G, SFP+ 10G, or SFP 1G modules need to be utilised without rewiring or adding a downstream switch.

The MikroTik XQ+DA0003 is a 3-metre passive Direct Attach Copper (DAC) twinax cable with QSFP+ to QSFP+ and QSFP28 to QSFP28 connectors, supporting both 40 Gigabit and 100 Gigabit data rates. It is designed for direct short-reach interconnects between QSFP28-equipped MikroTik devices such as the CCR2216, CRS504, CRS518, CRS510, and CRS520, offering a latency-free, plug-and-play alternative to optical transceivers and fibre patch cables for rack-to-rack or within-cabinet connections. The 3-metre length provides enough reach to comfortably span adjacent rack units or nearby racks while keeping cable management tidy and installations clean.

The S+AO0005 is a 5-meter SFP+ Active Optics direct attach cable that supports 10Gbps connectivity. It provides a cost-effective solution for connecting two SFP/SFP+ devices within or across adjacent racks.

The MikroTik XQ+DA0001 is a 1-metre passive Direct Attach Copper (DAC) twinax cable with QSFP+ to QSFP+ and QSFP28 to QSFP28 connectors, supporting both 40 Gigabit and 100 Gigabit data rates. Designed for direct short-reach interconnects between QSFP28-equipped MikroTik devices — including the CCR2216, CRS504, CRS518, CRS510, and CRS520 — it offers a plug-and-play, zero-latency alternative to fibre transceivers and patch cables for within-cabinet or same-rack connections. The 1-metre length is the ideal choice for connecting devices installed in adjacent rack units or a tightly grouped cabinet stack.
