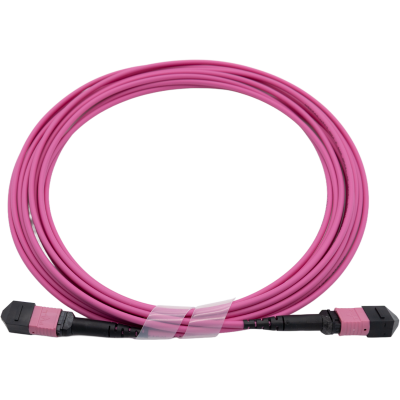

SYNOXX 16F OM4 Type B MPO Trunk Cable 16FMTPOM4-5M MPO Female 5m

The SYNOXX 16FMTPOM4-5M is a 16-fibre OM4 multimode MPO-to-MPO Type B plenum trunk cable delivering 5 meters of structured cabling infrastructure for within-cabinet and short cross-connect parallel optic applications. At 5 meters, the 16FMTPOM4-5M occupies the reach class between 3m patch-length trunks and 10m within-room trunks — serving high-density MPO deployments where transceivers and patch panels share the same cabinet or immediately adjacent enclosures, and where longer trunks would create cable management bulk and bend-radius risk. With 16 fibers in a single MPO run, the 16FMTPOM4-5M simultaneously supports two independent 100G SR8 transceiver links, one 400G SR8 link, or two 100G CWDM8 wavelengths — fiber capacities that 8-fibre and 12-fibre trunks cannot provide in a single trunk pull.

Type B (crossover) polarity reverses fiber positions at each connector end for direct MPO-to-MPO trunk connections between matched Type B patch panels without polarity correction modules. Built to ≤0.35dB insertion loss at 850nm and 1300nm wavelengths with OM4 50/125µm multimode glass, the 16FMTPOM4-5M delivers the low-loss signal path required by parallel optic transceivers including SYNOXX EQP85Y-01D 100G QSFP28 SR4, SYNOXX EDQD400 400G QSFP-DD series, and all IEEE 802.3 parallel optic standards. The OFNP plenum-rated jacket meets NEC Article 770 and Canadian fire code requirements for installation in air-handling spaces, raised floors, and above-ceiling cable trays.

IC Certified by Industry Canada (ISED), the SYNOXX 16FMTPOM4-5M meets regulatory requirements for commercial deployment.
