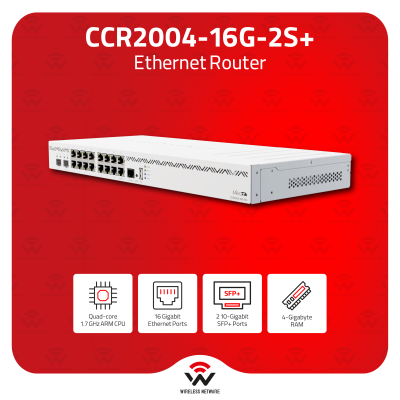

MikroTik CCR2004-16G-2S+ Quad-Core 10G SMB Router
The MikroTik CCR2004-16G-2S+ is a 1U rack-mount SMB router — Annapurna Labs AL32400 quad-core ARMv8 Cortex-A57 at 1,700 MHz, Marvell 88E6191X switch chip (two groups of 8× GbE each on a dedicated 10 Gbps full-duplex line to CPU), 4 GB DDR4 RAM, 128 MB NAND, RouterOS v7 License 6, 16× GbE + 2× SFP+ 10G, RJ45 serial console, USB, dual redundant AC PSU (100–240V, 50–60 Hz), 2 fans, 48W max / 35W without attachments, CPU + PCB + voltage monitors, 443 × 210 × 44 mm, -20°C to +60°C, MTBF ~200,000 hours at 25°C. CE, EAC, RoHS. Includes rack ears, 2× IEC cord, K-57 kit. USD 465.00.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CCR2004-16G-2S+ is a 1U rack-mount SMB router at USD 465.00 — quad-core AL32400 ARMv8 at 1,700 MHz with the best single-core performance per watt and best overall performance per watt in the entire CCR product line at time of launch. MikroTik's own benchmark: surpasses the CCR1009 in CPU-heavy configurations and trades blows with the CCR1016.
**No bottlenecks — dual switch chip architecture**
16× GbE ports are split into two groups of 8, each group connected to a dedicated Marvell 88E6191X switch chip. Each switch chip has its own 10 Gbps full-duplex line to the CPU. Each SFP+ cage also has a dedicated 10 Gbps full-duplex line to the CPU — four independent 10G paths total. As long as the CPU can handle the load, all ports run at wire speed simultaneously.
**4 GB DDR4 + RouterOS v7 License 6 — full feature set**
4 GB DDR4 RAM and 128 MB NAND with RouterOS v7 License 6 — the highest RouterOS license tier, covering BGP, OSPF, MPLS, WireGuard, IPsec, advanced queues, containers, and full firewall capability. No feature restrictions.
**Dual redundant PSU — 1U rackmount reliability**
Two built-in AC PSU slots (100–240V, 50–60 Hz), 2 fans, 48W max. Rack ears, 2× IEC cord, and K-57 kit included — ships rack-ready.
**Canadian market note:** CE, EAC, RoHS only — no FCC, no IC. Wired router, no wireless transmitter — no ISED wireless type approval required. Confirm CSA/cUL electrical safety with distributor before listing.
- Product code
- CCR2004-16G-2S+
- Architecture
- ARM 64bit
- CPU core count
- 4
- Operating System
- RouterOS (License level 6)
- Size of RAM
- 4 GB
- Storage size
- 128 MB
- Storage type
- NAND
- Tested ambient temperature
- -20°C to +60°C
- Max Power consumption
- 48 W
- Max power consumption without attachments
- 35 W
- Dimensions
- 443 x 210 x 44 mm
- Number of AC inputs
- 2
- AC input range
- 100-240 V
- USB slot type
- 1 (3.0 type A)
- chipset
- 88E6191X, 88E619X
- Certification
- CE, FCC, IC
- RAM type
- DDR4
- Number of 10G SFP+ ports
- 2
- Number of 1G Ethernet ports
- 16
