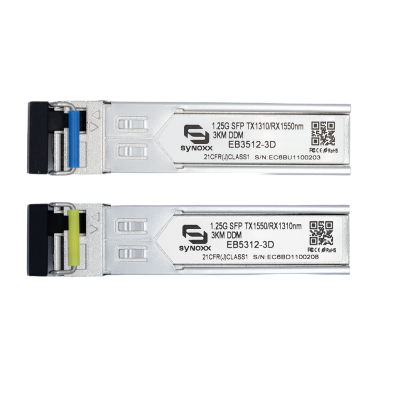

SYNOXX 1.25G SFP BIDI TX1310nm/RX1550nm 3KM LC (PAIR)
A pair of Synoxx 1.25Gbps BiDi SFP transceivers designed for reliable single-mode fiber communication over distances up to 3km. Featuring TX1310nm/RX1550nm wavelengths, LC connector, and Digital Diagnostic Monitoring (DDM), these modules are ideal for telecom, enterprise, and data center applications.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The Synoxx 1.25G BiDi SFP transceiver is a high-performance optical module designed for bidirectional data transmission over a single strand of single-mode fiber (SMF). Operating at a data rate of 1.25Gbps, it utilizes a TX1310nm transmitter and RX1550nm receiver to achieve distances up to 3km.
This module features an LC simplex connector and supports Digital Diagnostic Monitoring (DDM), enabling real-time monitoring of critical parameters such as temperature, voltage, and optical power. It is compliant with SFP MSA and SFF-8472 standards, ensuring broad compatibility with networking equipment.
Designed for stable and efficient operation, the transceiver runs on a 3.3V power supply and supports a commercial operating temperature range of 0°C to +70°C. It is well-suited for Gigabit Ethernet, fiber channel, and switch-to-switch applications.
- Product code
- EB3512-3D / EB5312-3D
- Tested ambient temperature
- 0 to +70°C
- Connector
- LC
- Data Rate
- 1.25 G
- Distance
- 3 KM
- Format
- SFP
- Wavelength
- 1310nm-TX / 1550nm-RX
- Fiber Type
- SM
- DDM
- Yes
