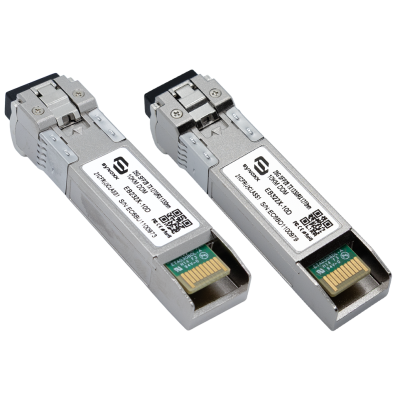

SYNOXX 25G SFP28 BiDi TX1270nm/RX1330nm 10KM LC (PAIR)
25G BiDi SFP28 transceiver, 10KM, LC, SM, DDM, 1270nm Tx / 1330nm Rx, IEEE 802.3cc, RoHS.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The EB232X-10D / EB322X-10D is a high-performance 25G SFP28 BiDi transceiver pair designed for single-mode fiber communication over distances up to 10km. This matched pair operates using complementary wavelengths, with 1270nm TX / 1330nm RX and 1330nm TX / 1270nm RX, enabling bidirectional transmission over a single LC fiber.
It supports data rates up to 25.78125Gbps and is compliant with IEEE 802.3cc standards. The modules feature a DFB transmitter and APD receiver, ensuring reliable performance and high sensitivity for stable long-distance communication.
Designed in a hot-pluggable SFP28 form factor, the transceivers offer low power consumption (≤1.5W) and full Digital Diagnostic Monitoring (DDM) support for real-time performance tracking. They are compliant with SFP-8431, SFP-8432, and SFP-8472 standards, ensuring compatibility with a wide range of networking equipment.
This product is sold as a matched BiDi pair, required for proper operation.
- Product code
- EB232X-10D / EB322X-10D
- Tested ambient temperature
- 0 to +70°C
- Connector
- LC
- Data Rate
- 25G
- Distance
- 10KM
- Format
- SFP28
- Wavelength
- 1270nm Tx / 1330nm Rx
- Fiber Type
- SM
- DDM
- Yes
