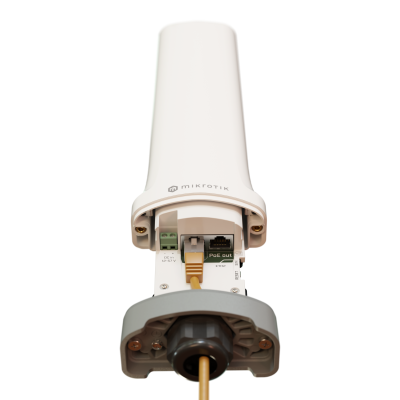

CME Gateway

The CME Gateway is a rugged, low-cost CAT-M narrow-band LTE modem designed for low-bandwidth mobile connectivity. With two Ethernet ports, PoE support, and IP66 water resistance, it's perfect for connecting Ethernet devices to mobile networks in harsh environments.

US$89.00

US$89.00 Tax excluded

Be sure to check availability date
check Available!
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

The CME Gateway revolutionizes connectivity by enabling legacy Ethernet devices to communicate over mobile networks. Powered by a built-in CAT-M narrow-band LTE modem, this cost-effective solution is ideal for low-bandwidth, data-efficient applications. The rugged IP66-rated enclosure withstands harsh environments, while PoE-in, PoE-out, and 2-pin DC terminal options simplify deployment.

Key Features:

  • CAT-M Narrow-Band LTE Modem: Affordable, low-bandwidth mobile connectivity for remote devices.
  • Dual Ethernet Ports: Connect legacy devices effortlessly.
  • IP66 Water Resistance: Durable in damp, outdoor, or industrial setups.
  • Integrated GPS: Track locations for advanced applications.
  • 2.4 GHz Wireless for Configuration: Easily manage the device via MikroTik’s mobile app.

Deployment Solutions:

  1. Smart Metering: Send electricity meter data over mobile networks for seamless remote monitoring.
  2. Agriculture: Connect sensors in farming equipment for data transmission.
  3. Forestry & Outdoor Monitoring: Deploy in remote, damp environments to collect environmental data.
  4. Industrial IoT: Enable legacy industrial devices to transmit data securely and efficiently.

Industries Benefiting:

  • Utilities and Energy
  • Agriculture and Forestry
  • Industrial IoT
  • Remote Environmental Monitoring

Ethernet test results

CME22-2n-BG77 QCA9531 100M two port test
Mode Configuration 1518 byte 512 byte 64 byte
kpps Mbps kpps Mbps kpps Mbps
Bridging none (fast path) 16.3 197.9 47.0 192.5 297.6 152.4
Bridging 25 bridge filter rules 16.3 197.9 47.0 192.5 80.4 41.2
Routing none (fast path) 16.3 197.9 47.0 192.5 233.1 119.3
Routing 25 simple queues 16.3 197.9 47.0 192.5 131.4 67.3
Routing 25 ip filter rules 16.3 197.9 47.0 192.5 49.1 25.1
  1. All tests are done with Xena Networks specialized test equipment (XenaBay),and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration, different configurations most likely will result in lower results
MikroTik
CME22-2n-BG77
12 Items
4752224007865
Product code
CME22-2n-BG77
Architecture
MIPSBE
CPU
QCA9531
CPU core count
1
CPU nominal frequency
650 MHz
RouterOS License
L4
Operating System
RouterOS
Size of RAM
64M
Storage type
FLASH
MTBF
Approximately 100'000 hours at 25C
Tested ambient temperature
-40°C to 70°C
Number of DC inputs
3 (MicroUSB, DC jack, PoE-IN)
DC jack input Voltage
12-57 V
Max Power consumption
31 W
Max power consumption without attachments
6 W
PoE in
802.3af/at
PoE in input Voltage
18-57 V
PoE out
Ether2
Passive PoE up to 57V
10/100 Ethernet ports
2
Number of SIM slots
1 Modem (Nano SIM)
Wireless 2.4 GHz Max data rate
150 Mbit/s
Wireless 2.4 GHz number of chains
1
Wireless 2.4 GHz standards
802.11b/g/n
Antenna gain dBi for 2.4 GHz
2
Wireless 2.4 GHz chip model
QCA9531
Wireless 2.4 GHz generation
Wi-Fi 4
Certification
CE, FCC, IC, EAC, ROHS
