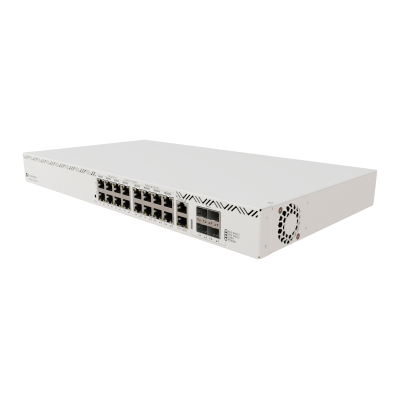

CRS320-8P-8B-4S+RM
The MikroTik CRS320-8P-8B-4S+RM is a high-power PoE++ switch with 17 Gigabit ports, 4 SFP+ ports, and up to 90W PoE++ per port, ideal for demanding devices and simplified cable management.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik CRS320-8P-8B-4S+RM is the first MikroTik switch to feature PoE++ (802.3bt), delivering up to 90W per port for high-demand devices like 4K security cameras, LED displays, and PoE-powered lighting. It includes 17 Gigabit Ethernet ports: 8 with 802.3af/at PoE-out and 8 with 802.3bt PoE++. Additionally, it has a management port, 4 SFP+ 10G uplink ports, and a console port. Powered by a Marvell switch-chip, it supports VLAN filtering and hardware-offloaded Layer-3 routing. With a 600W power supply (expandable to 1150W), this 1U rackmount switch is perfect for hotels, offices, and conference centers seeking efficient and reliable networking.
Switching results
| CRS320-8P-8B-4S+RM | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 4,632.6 | 56,258.8 | 13,392.9 | 54,857.1 | 84,821.4 | 43,428.6 |
| Switching | Non blocking Layer 2 capacity | 4,632.6 | 112,517.6 | 13,392.9 | 109,714.3 | 84,821.4 | 86,857.1 |
| Switching | Non blocking Layer 1 throughput | 4,632.6 | 57,000.0 | 13,392.9 | 57,000.0 | 84,821.4 | 57,000.0 |
| Switching | Non blocking Layer 1 capacity | 4,632.6 | 114,000.0 | 13,392.9 | 114,000.0 | 84,821.4 | 114,000.0 |
- Product code
- CRS320-8P-8B-4S+RM
- Architecture
- ARM 32bit
- CPU nominal frequency
- Dual-Core 800 MHz
- Switch chip model
- 98DX226S
- Operating System
- RouterOS v7 only, License level 5
- Size of RAM
- 256 MB
- Storage size
- 32 MB, FLASH
- Tested ambient temperature
- -10°C to +50°C
- Max Power consumption
- 1150 W
- Max power consumption without attachments
- 36 W
- Cooling type
- 3 fans
- PoE out ports
- Ether9-Ether16 (bt)
- PoE out
- 802.3af/at/bt
- Max out per port output - input (less than 30 V)
- 560 (af/at) / 1667 (bt) mA
- Max total out (A)
- 17.82 A
- Total output current
- 17.82
- Total output power
- 963
- 10/100/1000 Ethernet ports
- 17
- Dimensions
- 444 x 235 x 44 mm
- Number of AC inputs
- 1
- AC input range
- 100-240 V
- CPU temperature monitor
- Yes
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Frequency
- 47-63
- Certification
- CE, EAC, ROHS
- IP
- 20
- Number of 1G Ethernet ports with PoE-out
- 16
- Nominal current
- 10.35 A
