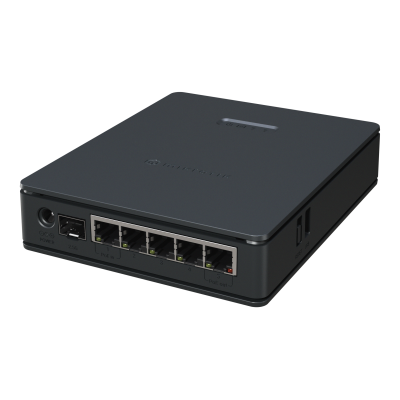

hAP ax S
Our most cost-effective Wi-Fi 6 access point yet. Triple-chain 5 GHz radio (up to 900 Mbit/s throughput), dual-band Wi-Fi 6, 5x Gigabit Ethernet ports, and a 2.5G SFP. Powered by a dual-core ARM CPU, with PoE-in/PoE-out flexibility, a standard DC jack, USB, and a sturdy high-end enclosure that can be mounted on the wall.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Meet the new hAP ax S – our most cost-effective Wi-Fi 6 access point yet. It costs far less than most mid-range, mass-produced routers… while delivering far more flexibility and longevity right out of the box! Under the sleek exterior lies a dual-core ARM CPU, dual-band Wi-Fi 6, USB 2.0, five Gigabit Ethernet ports, and a 2.5 Gigabit SFP cage. You can connect direct fiber-to-home or link up a high-speed NAS for lightning-fast local access.
Triple-chain 5 GHz: the key to stable, gigabit-class Wi-Fi
The new hAP ax S features a triple-chain 5 GHz radio that achieves real-worldthroughput of around 800–900 Mbit/s. That means smooth streaming, fasterdownloads, and stable performance across multiple devices – even in crowdedenvironments.It’s also perfect as a dedicated Wi-Fi 6 VR streaming access point for PC VRheadsets, offering higher resolution and lower latency without the cables.Unlike single-purpose “gaming” access points, the hAP ax S gives you the fullperformance, flexibility, and future-proofing of RouterOS v7!
Enjoy dual powering options – DC jack or PoE-in – and a passive PoE-out port to power another MikroTik device, such as an additional AP or a compact desktop switch. This makes it ideal for both home setups and small offices where clean cable management matters.
Your network, your rules
Despite the low price, the hAP ax S runs a full version of RouterOS v7, the most flexiblenetworking software on the market.In the age of growing data security and privacy challenges, RouterOS gives you completecontrol – with no subscriptions, no upsells, no locked features. Whether you’re configuringyour first Wi-Fi network through the MikroTik app or building complex topologies, RouterOS v7grows with you.VLANs, firewalls, VPN tunnels, traffic shaping, scripting, SMS automation – the possibilities areendless. For example: you can easily isolate IoT devices into separate subnets to protect yourhome network from unwanted access via the smart fridge or those flashy LED light hubs.
Ethernet test results
| E62iUGS-2axD5axT | EN7562CT 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 340.3 | 4132.4 | 389 | 1593.5 | 402.6 | 219 |
| Bridging | 25 bridge filter rules | 190.6 | 2315.1 | 197 | 806.8 | 193.9 | 105.5 |
| Routing | none (fast path) | 300.3 | 3646.6 | 340.5 | 1394.7 | 342.2 | 186.1 |
| Routing | 25 simple queues | 173.1 | 2102.6 | 174.3 | 713.8 | 171.9 | 93.5 |
| Routing | 25 ip filter rules | 117.8 | 1430.3 | 121.6 | 498.1 | 117 | 63.6 |
IPsec test results
| E62iUGS-2axD5axT | EN7562CT IPsec throughput | ||||||
| Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Single tunnel | AES-128-CBC + SHA1 | 31.4 | 351.7 | 34.8 | 142.5 | 37.2 | 20.2 |
| 256 tunnels | AES-128-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.5 | 10.1 |
| 256 tunnels | AES-128-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA1 | 16.8 | 188.2 | 17.6 | 72.1 | 18.7 | 10.2 |
| 256 tunnels | AES-256-CBC + SHA256 | 16.9 | 189.3 | 17.9 | 73.3 | 18.9 | 10.3 |
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase..
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 24 | -100 |
| 11MBit/s | 24 | -94 |
| 6MBit/s | 23 | -96 |
| 54MBit/s | 21 | -80 |
| MCS0 | 22 | -96 |
| MCS7 | 20 | -75 |
| MCS9 | 19 | -70 |
| MCS11 | 15 | -67 |
| 5 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 6MBit/s | 23 | -96 |
| 54MBit/s | 21 | -81 |
| MCS0 | 23 | -96 |
| MCS7 | 20 | -77 |
| MCS9 | 20 | -72 |
| MCS11 | 18 | -69 |
- Product code
- RB962UiGS-5HacT2HnT
- CPU architecture
- ARM 32bit
- CPU
- Dual-Core EN7562CT 950 MHz
- Switch chip model
- EN7562CT
- Operating System
- RouterOS v7, License level 4
- Size of RAM
- 512 MB
- Storage size
- 128 MB NAND
- Number of DC inputs
- 2 (DC jack, PoE-In)
- DC jack input Voltage
- 12-28 V
- Max Power consumption
- 34 W
- Max power consumption without attachments
- 11 W
- PoE in
- Passive PoE
- PoE in input Voltage
- 18-28 V
- PoE out ports
- Ether5
- PoE out
- Passive PoE
- Max out per port output - input (less than 30 V)
- 0.6 A
- Total output power
- 16.8 W
- Dimensions
- 156 x 127 x 36 mm
- USB slot type
- 1 USB type A
- Wireless 2.4 GHz number of chains
- 2
- Antenna gain dBi for 2.4 GHz
- 5.5 dBi
- Wireless 5 GHz number of chains
- 3
- Antenna gain dBi for 5 GHz
- 8 dBi
- Operating Temperature
- -40°C to +70°C
- Wireless Standards
- 2.4 GHz / 5 GHz
- RAM type
- DDR3
- Number of 1G Ethernet ports
- 5
- Wireless interface model
- MT7916 / MT7976
- Power adapter nominal voltage
- 24 V
- Power adapter nominal current
- 1.5 A
- Protocols
- 802.11b/g/n/ax - 802.11a/n/ac/ax
- Number of 1G SFP ports
- 1 (2.5G supported)
