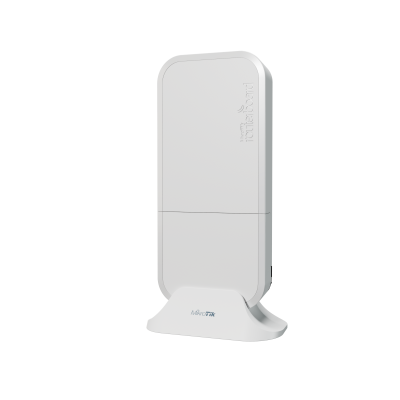

wAP ax
The wAP ax brings fast, reliable Wi-Fi 6 to challenging environments such as rural gas stations, bus stops, or countryside homes. Its durable, weatherproof design, dual-band Wi-Fi 6 radios, and advanced security features make it perfect for seamless indoor and outdoor connectivity.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The wAP ax is a versatile Wi-Fi 6 access point built for demanding environments. Its compact, weatherproof form factor has been rigorously tested globally, offering simplicity, durability, and advanced performance. Equipped with dual-band, dual-chain (2x2 MIMO) radios, it provides up to 90% faster speeds in the 2.4 GHz band and up to 40% faster speeds in the 5 GHz band compared to previous standards.
Security features include OWE/WPA3-PSK/WPA3-EAP encryption and management frame protection to defend against brute-forcing and de-authentication attacks. Seamless roaming ensures devices automatically connect to the strongest signal in larger deployments.
With a dual-core ARM CPU and RouterOS v7, the wAP ax supports stable connectivity and robust VPN performance. It also features two Gigabit Ethernet ports (PoE-in on one) for flexible powering and a vandal-proof design for secure installations.
Deployment Solutions:
- Public Wi-Fi: Ideal for public spaces like bus stops, rural gas stations, or parks.
- Residential: Extend fast Wi-Fi coverage to countryside homes or remote properties.
- Business: It can be used as a reliable access point for cafes, outdoor venues, or small businesses in rural areas.
Industries Benefiting:
- Hospitality
- Retail
- Transportation
- Rural Connectivity Providers
- Outdoor Event Management
- Product code
- wAPG-5HaxD2HaxD
- Architecture
- ARM 64bit (RouterOS 32bit)
- CPU core count
- 4
- CPU nominal frequency
- 800 MHz
- Operating System
- RouterOS
- Size of RAM
- 256 MB
- Storage size
- 128 MB
- Storage type
- NAND
- Tested ambient temperature
- -40 to +70C
- Number of DC inputs
- 2 (PoE-IN, DC jack)
- Max Power consumption
- 12
- Max power consumption without attachments
- 9 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 18-57 V
- 10/100/1000 Ethernet ports
- 2
- Dimensions
- 185 x 85 x 30 mm
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Wireless 2.4 GHz number of chains
- 2
- Wireless 2.4 GHz standards
- 802.11b/g/n/ax
- Antenna gain dBi for 2.4 GHz
- 2
- Wireless 2.4 GHz chip model
- IPQ-5010
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac/ax
- Antenna gain dBi for 5 GHz
- 2.5
- Wireless 5 GHz chip model
- QCN-6102
