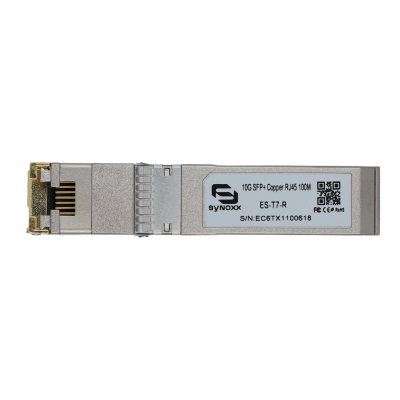

SYNOXX 10G Copper SFP+
The ES-T7-R is a high-performance 10GBase-T SFP+ copper transceiver supporting up to 10Gbps over Cat6a/7 cables up to 100 meters. It offers a cost-effective solution for high-speed Ethernet without requiring fiber optics.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The ES-T7-R is a 10GBase-T Copper SFP+ transceiver designed for high-speed Ethernet connectivity over standard twisted-pair cables. It supports data rates up to 10Gbps with a reach of up to 100 meters using Cat6a/7 cables.
This module is compliant with IEEE 802.3 standards and SFP+ MSA, ensuring compatibility with a wide range of networking equipment. With its compact RJ45 interface and low power consumption, it provides a practical and cost-effective alternative to fiber deployments.
Key Features:
Supports up to 10Gbps data rate
Compatible with Cat6a / Cat7 cables up to 100m
Hot-pluggable SFP+ form factor
Low power consumption (max 2.5W)
Fully metallic enclosure for low EMI
Supports standard SFP+ MSA interface
Access via 2-wire serial EEPROM
Operating temperature: 0°C to 70°C
Applications:
10 Gigabit Ethernet over copper cabling
Data center networking
Enterprise LAN connections
Switch-to-switch and server connections
Cost-effective fiber alternative
Industries That Benefit:
Data centers and cloud providers
Enterprise IT networks
Telecommunications
System integrators
- Product code
- ES-T7-R
- Connector
- RJ45 Copper
- Data Rate
- 1 Gbps, 10 Gbps
- Distance
- 100 m
- Operating temperature
- 0°C to 70°C
