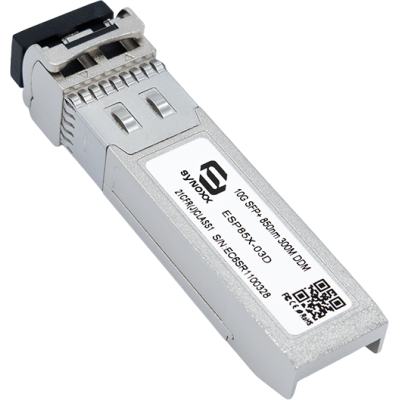

SYNOXX 10G SFP+ SR 850nm 300M LC
Synoxx 10G SFP+ SR transceiver, up to 300m over MMF, 850nm wavelength, LC connector, supports Digital Diagnostics Monitoring (DDM), low power consumption, hot-pluggable, RoHS compliant.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The ESP85X-03D is a 10G SFP+ SR optical transceiver designed for high-speed data transmission over multimode fiber (MMF). It operates at 850nm using a VCSEL transmitter and PIN photodetector, supporting distances up to 300m over OM3 fiber.
Compliant with IEEE 802.3ae and SFF-8431 standards, this module delivers reliable 10Gbps performance with low power consumption and excellent EMI protection through its all-metal housing. It is hot-pluggable and fully RoHS compliant.
The module supports Digital Diagnostics Monitoring (DDM), enabling real-time monitoring of parameters such as temperature, voltage, transmit power, and receive power. Operating within a commercial temperature range of 0°C to 70°C, it is ideal for data centers, enterprise networks, and 10G Ethernet applications.
- Product code
- ESP85X-03D
- Tested ambient temperature
- 0 to 70 °C
- Connector
- LC
- Data Rate
- 10G
- Distance
- 300M
- Format
- SFP+
- Mode
- MM
- Wavelength
- 850nm
- DDM
- Yes
