MikroTik GPERx6 Outdoor Hybrid Fiber PoE Switch DC

The MikroTik GPERx6 (CSS606-1G-2Gi-3S+OUT) solves a problem that every outdoor network installer knows well: long cable runs with too many cables, too many junction boxes, and too many potential failure points. The GPERx6 collapses all of that into a single hybrid cable deployment — fiber for data, copper for power — and handles the splitting at the far end so connected devices get exactly what they need.

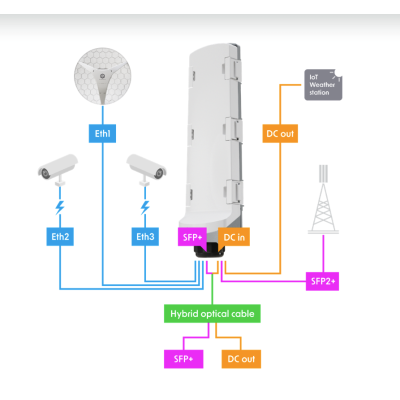

The concept is simple but the application is powerful. Run a single hybrid fiber + copper cable from your head-end to a remote camera tower, perimeter post, or IoT cabinet 1–2 km away. The GPERx6 at the far end terminates that cable and distributes: 10G fiber goes to SFP+ cages for high-speed uplinks or further fiber runs; DC power feeds the Passive PoE outputs for cameras and access points; and the 3× DC output ports handle IoT sensors, specialized hardware, or any device that does not use PoE. One cable. One device. Everything connected.

The 88E6193X switch chip — the same chip proven in the netPower Lite 7R — handles switching without CPU overhead. The IP66-rated enclosure, passive cooling, and -40°C to +70°C operating range ensure the GPERx6 performs in industrial, coastal, agricultural, and extreme-climate environments without compromise.

Key features:

- 3× 10G SFP+ cages — long-distance fiber uplinks or further fiber extension

- 3× 10/100/1000 Mbps Gigabit Ethernet — Ether1 with Reverse PoE-in (802.3bt, 42–57V), Ether2–Ether3 with Passive PoE-out (up to 57V)

- Passive PoE-out — low voltage limit 1.2A, high voltage limit 0.625A, total PoE output 150W

- 3× DC outputs — power IoT devices, sensors, and non-PoE hardware directly

- Dual DC inputs — DC jack (12–57V) and PoE-in (802.3bt, 42–57V)

- Hybrid fiber + copper cable support — carry data and DC power over a single cable up to 1–2 km

- Dedicated 88E6193X 10G switch chip — proven, wire-speed switching without CPU overhead

- SwOS — simple, fast, and efficient switch management with free lifetime updates

- Passive cooling, -40°C to +70°C, max power consumption 160W (6W without attachments)

- MTBF ~200,000 hours at 25°C

- CPU temperature monitoring

- Certified CE, EAC, RoHS | IP66

In the box: K-93 fastening set, 2× hose clamps.

Ideal for: perimeter surveillance on large campuses, estates, industrial parks, and ports; remote CCTV towers and pole-mounted camera systems; solar-powered edge networking sites; IoT sensor deployments in agricultural or utility environments; and any outdoor installation where minimizing cable runs between 100m and 2km is critical to cost and reliability.
