GPERx6

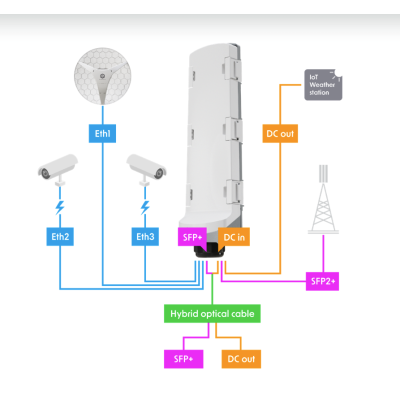

Cut the cable clutter – extend power and fiber together, anywhere – with a single hybrid cable. At the far end, the GPERx6 splits it all neatly: SFP+ for further long-distance uplinks, PoE-out for powering other switches or access points, and DC outputs for IoT gear or specialized devices.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The outdoors can be brutal: blistering heat, freezing cold, wind, rain. The elements attack your gear. The wiring is a nightmare. The GPERx6 solves both problems – a rugged, outdoor-ready switch that cuts cable clutter and keeps deployments simple.
On the surface, it’s straightforward:
3 Gigabit Ethernet ports with PoE-in (#1) and PoE-out (#2 & #3)
3× 10G SFP+ cages for long-distance fiber
3 DC outputs for devices that don’t use PoE, for example, IoT setups
Heavy-duty IP66 enclosure with handy mounting hardware
A dedicated 10G switch chip (tested in ISP favorites like the netPower Lite 7R)
But the real advantage is how it allows you to manage power and data over long distances (1-2 km) even in the trickiest scenarios!
Switching results
| CSS606-1G-2Gi-3S+OUT | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 2,682.1 | 32,570.9 | 7,753.8 | 31,759.4 | 49,107.1 | 25,142.9 |
| Switching | Non blocking Layer 2 capacity | 2,682.1 | 65,141.7 | 7,753.8 | 63,518.8 | 49,107.1 | 50,285.7 |
| Switching | Non blocking Layer 1 throughput | 2,682.1 | 33,000.0 | 7,753.8 | 33,000.0 | 49,107.1 | 33,000.0 |
| Switching | Non blocking Layer 1 capacity | 2,682.1 | 66,000.0 | 7,753.8 | 66,000.0 | 49,107.1 | 66,000.0 |
- Product code
- CSS606-1G-2Gi-3S+OUT
- Switch chip model
- 88E6193X
- Operating System
- SwOS
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 2 (PoE-IN, DC jack)
- DC jack input Voltage
- 12-57 V
- Max Power consumption
- 160 W
- Max power consumption without attachments
- 6 W
- Cooling type
- Passive
- PoE in
- 802.3 bt
- PoE in input Voltage
- 42-57 V
- PoE out ports
- Ether2-Ether3
- PoE out
- Passive PoE up to 57V
- Max total out (A)
- 2.4 A
- Total output power
- 150
- 10/100/1000 Ethernet ports
- 3
- SFP+ ports
- 3
- CPU temperature monitor
- Yes
- Certification
- CE, EAC, ROHS
- Number of 1G Ethernet ports
- 1
- IP
- 66
- Number of 1G Ethernet ports with PoE-out
- 2
