MikroTik L23UGSR-5HaxD2HaxD Dual-Band Wi-Fi 6 AP ROS

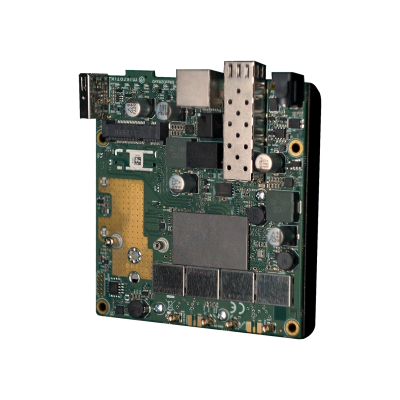

The MikroTik L23UGSR-5HaxD2HaxD is a modular Wi-Fi 6 RouterBOARD built for network integrators, engineers, and enthusiasts who want to design and build their own custom wireless devices. It takes the form factor and DIY spirit of the classic RB922 series and brings it fully up to date with a Qualcomm Maple IPQ-5010 ARM processor running at 800 MHz, 256 MB of RAM, 128 MB of NAND storage, and RouterOS v7.

The board features a powerful built-in dual-band, dual-chain Wi-Fi 6 radio. The 2.4 GHz interface (802.11b/g/n/ax, IPQ-5010 chip) delivers up to 574 Mbit/s, while the 5 GHz interface (802.11a/n/ac/ax, QCN-6102 chip) reaches up to 2400 Mbit/s — both operating at Wi-Fi 6 (802.11ax) standard, offering improved speed, stability, security, and client density compared to previous Wi-Fi generations. Four MMCX antenna connectors give full flexibility to choose from a wide variety of external antennas to suit any deployment scenario.

Connectivity options are broad: a 1× 10/100/1000 Gigabit Ethernet port, a 1× SFP port supporting up to 2.5G, a miniPCIe expansion slot for additional modules, a Nano SIM slot for use with a compatible modem card, and a USB Type-A port (with USB Power Reset, up to 1.5 A output). This makes the L23UGSR a versatile platform for building access points, CPE devices, point-to-point wireless links, or cellular-backhaul solutions.

Power is supplied via DC jack (12–28 V) or Passive PoE (18–28 V), with a maximum consumption of 25 W (12 W without attachments). Passive cooling and a tested operating range of -40°C to 70°C make it suitable for outdoor enclosure installations in demanding environments.

Additional features include PCB temperature monitoring, voltage monitoring, and a built-in beeper for audible alerts and alignment assistance. Design files, dimensions, and block diagram documentation are available from MikroTik. RouterOS v7 is pre-installed and licensed — no separate purchase is required.

Key Specifications at a Glance

• Product Code: L23UGSR-5HaxD2HaxD
• Architecture: ARM 32-bit
• CPU: IPQ-5010 @ 800 MHz
• RAM: 256 MB
• Storage: 128 MB NAND
• Operating System: RouterOS v7
• 2.4 GHz Wi-Fi: 802.11b/g/n/ax (Wi-Fi 6), 2-chain, up to 574 Mbit/s, IPQ-5010
• 5 GHz Wi-Fi: 802.11a/n/ac/ax (Wi-Fi 6), 2-chain, up to 2400 Mbit/s, QCN-6102
• Antenna Connectors: 4× MMCX
• Gigabit Ethernet Ports: 1× 10/100/1000
• SFP Port: 1× (2.5G supported)
• miniPCIe Slot: 1
• SIM Slot: 1× Nano SIM
• USB Port: 1× USB Type-A (USB Power Reset, up to 1.5 A)
• Power Inputs: DC jack 12–28 V, Passive PoE 18–28 V
• Max Power Consumption: 25 W (12 W without attachments)
• Cooling: Passive
• Tested Ambient Temperature: -40°C to 70°C
• MTBF: Approximately 100,000 hours at 25°C
• PCB Temperature Monitor: Yes
• Voltage Monitor: Yes
• Beeper: Yes
• Certifications: CE, FCC, IC, RoHS
