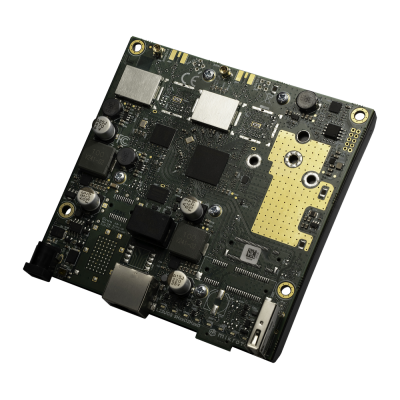

MikroTik L11UG-5HaxD Wi-Fi 6 AX2400 USB Outdoor
The MikroTik L11UG-5HaxD is a compact, modular 5 GHz Wi-Fi 6 RouterBOARD designed for building custom outdoor CPE devices, access points, and embedded wireless solutions. Powered by a dual-core Qualcomm ARM IPQ-5010 CPU, it features a 5 GHz Wi-Fi 6 radio (802.11a/n/ac/ax) delivering up to 2400 Mbit/s, a Gigabit Ethernet port, a USB Type-A port, and MMCX connectors for antenna customisation — all running RouterOS v7. Its compact form factor and wide power input range make it equally suited to network infrastructure and embedded applications such as vending machines, ATMs, and ticket stations.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik L11UG-5HaxD is a modular 5 GHz Wi-Fi 6 RouterBOARD for network integrators and engineers who want to build their own custom outdoor wireless devices. Based on the Qualcomm IPQ-5010 dual-core ARM processor running at 800 MHz, it carries 256 MB of RAM, 128 MB of NAND storage, and runs RouterOS v7 pre-installed and licensed — no separate purchase required.
The onboard Wi-Fi 6 (802.11a/n/ac/ax) radio, powered by a QCN-6102 chip, operates exclusively on the 5 GHz band and delivers up to 2400 Mbit/s with a dual-chain configuration. MMCX antenna connectors allow full antenna customisation, making it straightforward to pair with a wide range of external antennas — such as the HGO-antenna-OUT or sector antennas — to tailor the coverage pattern and gain to the specific deployment.
A single 10/100/1000 Gigabit Ethernet port provides wired connectivity for backhaul or LAN connectivity, and a USB Type-A port (with USB Power Reset, up to 1.5 A) adds flexibility for USB modem, storage, or other peripheral connectivity. PCB temperature monitoring, voltage monitoring, and a built-in beeper for alignment assistance and alerts round out the feature set.
The board accepts power via DC jack (12–28 V) or Passive PoE (18–28 V), with a maximum consumption of just 15 W (6 W without attachments). Passive cooling and a wide tested operating range of -40°C to 70°C make it well suited to outdoor enclosure installations.
Beyond traditional networking, the L11UG-5HaxD is noted as suitable for integration into embedded applications such as vending machines, ATMs, and ticket stations — where a compact, capable wireless board with flexible power options is needed.
Key Specifications at a Glance
- Product Code: L11UG-5HaxD
- Architecture: ARM 32-bit
- CPU: IPQ-5010 dual-core @ 800 MHz
- RAM: 256 MB
- Storage: 128 MB NAND
- Operating System: RouterOS v7
- 5 GHz Wi-Fi: 802.11a/n/ac/ax (Wi-Fi 6), 2-chain, up to 2400 Mbit/s, QCN-6102
- Antenna Connectors: MMCX
- Gigabit Ethernet Ports: 1× 10/100/1000
- USB Port: 1× USB Type-A (USB Power Reset, up to 1.5 A)
- Power Inputs: DC jack 12–28 V, Passive PoE 18–28 V
- Max Power Consumption: 15 W (6 W without attachments)
- Cooling: Passive
- Tested Ambient Temperature: -40°C to 70°C
- MTBF: Approximately 100,000 hours at 25°C
- PCB Temperature Monitor: Yes
- Voltage Monitor: Yes
- Beeper: Yes
- Certifications: CE, FCC, IC, EAC, RoHS
- Product code
- L11UG-5HaxD
- Architecture
- ARM
- CPU
- IPQ-5010
- CPU core count
- 2
- CPU nominal frequency
- 800 MHz
- Operating System
- RouterOS v7
- Size of RAM
- 256 MB
- Storage size
- 128 MB
- Storage type
- NAND
- MTBF
- Approximately 100'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 2 (PoE-IN, DC jack)
- DC jack input Voltage
- 12-28 V
- Max Power consumption
- 15 W
- Max power consumption without attachments
- 6 W
- Cooling type
- Passive
- PoE in
- Passive PoE
- PoE in input Voltage
- 18-28 V
- 10/100/1000 Ethernet ports
- 1
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB type A
- Max USB current (A)
- 1.5
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac/ax
- Wireless 5 GHz chip model
- QCN-6102
- Wi-Fi generation
- Wi-Fi 6
- Wireless 5 GHz Max data rate
- 2400 Mbit/s
- Certification
- CE, FCC, IC, EAC, ROHS
