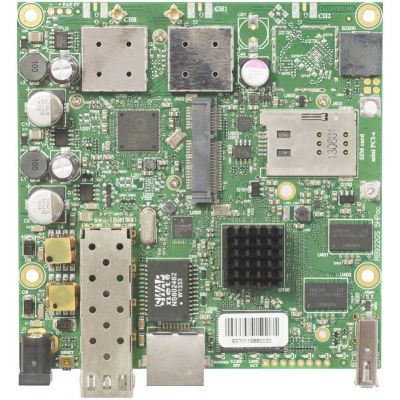

MikroTik RB922UAGS-5HPacD 5GHz Wi-Fi 5 SFP Board
The MikroTik RB922UAGS-5HPacD is a bare 5 GHz Wi-Fi 5 RouterBOARD — QCA9557 single-core MIPSBE at 720 MHz, 128 MB RAM, 128 MB NAND flash, RouterOS v7 License 4 (AP), onboard 5 GHz 802.11a/n/ac 2×2 MIMO 867 Mbps (QCA9882, 2× MMCX), 1× GbE, 1× SFP with DDMI, 1× miniPCIe + 1× SIM slot, 1× USB Type-A, passive PoE-in 8–30V, 17W max, beeper, PCB temperature + voltage monitors, passive cooling, IP00, 105 × 105 mm, -40°C to +70°C, MTBF ~100,000 hours at 25°C. CE, FCC, IC, EAC, RoHS. International version — 5150–5875 MHz full range. Free software updates for life of product or minimum 5 years from purchase.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik RB922UAGS-5HPacD is a bare 5 GHz Wi-Fi 5 RouterBOARD — onboard 802.11ac 2×2 MIMO, 1× GbE, 1× SFP with DDMI, miniPCIe with SIM slot, USB, and passive PoE-in, supplied without an enclosure for custom wireless builds and embedded deployments.
**Onboard 5 GHz 802.11a/n/ac 2×2 MIMO — 867 Mbps 20/40/80 MHz channels**
QCA9882 onboard radio delivers 802.11a/n/ac (Wi-Fi 5) at up to 867 Mbps across 20, 40, and 80 MHz channels — 2× MMCX connectors for external antenna selection. International version (RB922UAGS-5HPacD) supports the full 5150–5875 MHz range — not factory locked like the US variant. Full frequency range for compliant Canadian deployment.
**1× SFP with DDMI + 1× GbE — fiber or copper uplink**
SFP cage with DDMI (Digital Diagnostics Monitoring Interface) allows real-time optical module health monitoring — RX/TX power, temperature, and bias current readable from RouterOS. Single GbE port for copper LAN or WAN connectivity.
**miniPCIe + SIM slot — 3G/4G modem or second wireless card**
One miniPCIe slot with a dedicated Mini SIM slot accepts a 3G/4G LTE modem for cellular WAN failover, or a second wireless card for dual-band or dual-radio deployments. USB Type-A (1A) with USB Power Reset for software-controlled modem reboot without on-site access.
**IC certified — Canadian market ready**
CE, FCC, IC, EAC, RoHS — confirmed ISED certification for compliant 5 GHz wireless sale and deployment across Canada. International frequency range (5150–5875 MHz) — not the US-locked variant (5170–5250 MHz / 5725–5835 MHz).
**No enclosure — bare board for custom builds.**
- Product code
- RB922UAGS-5HPacD
- Architecture
- MIPSBE
- CPU core count
- 1
- CPU nominal frequency
- 720 MHz
- Operating System
- RouterOS
- Size of RAM
- 128 MB
- Storage size
- 128 MB
- Storage type
- NAND
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 2 (DC jack, PoE-IN)
- DC jack input Voltage
- 8-30 V
- Max Power consumption
- 17 W
- PoE in
- Passive PoE
- PoE in input Voltage
- 8-30 V
- 10/100/1000 Ethernet ports
- 1
- Dimensions
- 105x105mm
- SFP DDMI
- yes
- SFP ports
- 1
- Number of SIM slots
- 1 Modem (Mini SIM)
- Number of USB ports
- 1
- USB Power Reset
- Yes
- USB slot type
- USB type A
- Max USB current (A)
- 1
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac
- Wireless 5 GHz chip model
- QCA9882
- MiniPCI-e slots
- 1
- Wireless 5 GHz Max data rate
- 867 Mbit/s
- Wireless 5 GHz generation
- Wi-Fi 5
- Certification
- CE/RED, FCC, IC, EAC, ROHS
