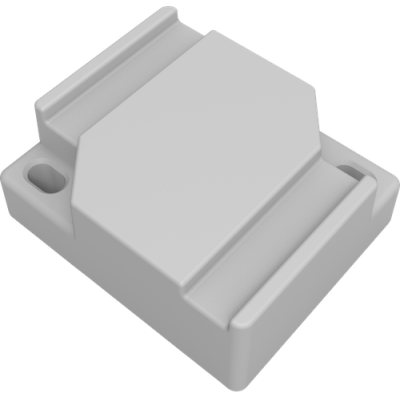

MikroTik TG-BT5-OUT Outdoor BLE 5.2 IoT Tag IP69K

The MikroTik TG-BT5-OUT is an outdoor Bluetooth 5.2 IoT asset tracking tag — IP69K (dust-tight, high-pressure washdown rated), cast in industrial-grade sealed mould, built-in temperature sensor (±0.5°C precision), accelerometer, NFC encoded MAC address, optional encryption, supports iBeacon, Eddystone, and MikroTik telemetry formats, 550 mAh battery (~5 years at 1s sending interval), 512 KB FLASH, -20°C to +85°C operating range, MTBF ~100,000 hours at 25°C. Compatible with MikroTik KNOT and any BLE 5.2 gateway. CE, FCC, IC, EAC, RoHS certified. No RouterOS — standalone BLE tag. USD 18.00.

US$18.00 Tax excluded

US$18.00 Tax excluded

Be sure to check availability date
check Available!
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

The MikroTik TG-BT5-OUT is a sealed outdoor BLE 5.2 asset tracking tag at USD 18.00 — the heavy-duty counterpart to the indoor TG-BT5-IN, built for industrial environments, construction sites, cold chain logistics, and any deployment where the tag will be exposed to water, dust, pressure washing, or extreme temperatures.

**IP69K — the highest ingress protection rating**

IP69K is fully dust-tight and rated for close-range high-pressure, high-temperature spray washdown — the standard used for food processing equipment, heavy machinery, and industrial vehicles. Completely sealed in industrial-grade moulded construction — no gaskets to degrade, no ports to seal.

**Temperature sensor ±0.5°C + accelerometer — condition monitoring**

Built-in temperature sensor with ±0.5°C precision enables cold chain condition monitoring — refrigerated transport, cold storage facilities, and temperature-sensitive construction materials. The accelerometer detects movement, impact, and orientation — enabling tamper detection, equipment utilisation tracking, and shock logging.

**~5-year battery life — 550 mAh at 1s interval**

550 mAh battery rated at approximately 5 years with a 1-second BLE advertising interval. No battery replacement access by design — fully sealed mould construction.

**iBeacon, Eddystone, MikroTik telemetry — universal gateway compatibility**

Works with MikroTik KNOT and any BLE 5.2 gateway. NFC encoded MAC address for rapid deployment identification.

**IC certified — Canadian market ready**

CE, FCC, IC, EAC, RoHS — confirmed ISED certification for compliant commercial sale across Canada.

MikroTik
TG-BT5-OUT
6 Items
4752224007308
Product code
TG-BT5-OUT
Storage size
512KB
Storage type
FLASH
