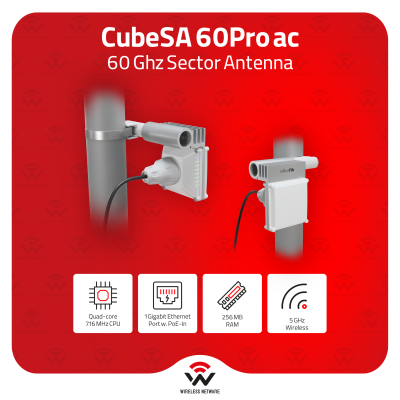

MikroTik CubeSA 60Pro ac 60GHz Sector AP PtMP 600m

The CubeSA 60Pro ac (CubeG-5ac60ay-SA) is MikroTik's sector antenna solution for building 60 GHz multipoint wireless networks. While point-to-point 60 GHz links excel at replacing cables between two fixed locations, the CubeSA 60Pro ac takes a different approach — its sector form factor allows it to serve as a central hub that multiple Cube 60Pro ac or compatible nRAY client devices connect to, achieving coverage of around 600 metres per sector. MikroTik's nRAY clients can reach up to 800 metres from the sector unit.

The 60 GHz band offers a unique combination of very high throughput and inherent freedom from the interference that crowds the 2.4 GHz and 5 GHz spectrum. Because 60 GHz signals have much shorter propagation characteristics and are absorbed by walls and obstacles, each sector deployment operates in near-isolation from neighbouring installations — making frequency reuse straightforward. For resilience, the CubeSA 60Pro ac includes a dedicated 5 GHz 802.11a/n/ac (Wi-Fi 5) radio that automatically activates as a backup link if the primary 60 GHz connection is interrupted, ensuring continuity of service. The 5 GHz radio provides up to 433 Mbps with a single chain and 11.5 dBi of antenna gain.

The processor is the Qualcomm IPQ-4019, a quad-core ARM 32-bit CPU with a dynamic frequency range of 448–896 MHz, paired with 256 MB of RAM and 64 MB of FLASH storage. RouterOS is preinstalled with a Level 4 licence, giving access to the full range of routing, bridging, firewall, VPN, and traffic management features. GPS is included as a standard package, enabling synchronisation, location-based management, and timing applications. One Gigabit Ethernet port handles both data and 802.3af/at PoE-in power (18–48 V), with a maximum power consumption of 13 W.

The enclosure has been upgraded with a strong metal base for improved mounting rigidity and thermal management, rated IP66 for full dust ingress protection and resistance to powerful water jets from any direction — essential for unsheltered mast or rooftop installations. Operating temperature is rated from -40 °C to 70 °C. Dimensions are 115 × 211 × 90 mm. The unit ships with a Cube mount bracket, 24 V power adapter, hose clamp, and Gigabit PoE injector. Certifications include CE, FCC, IC, EAC, and RoHS.

Key Specifications at a Glance

• Product Code: CubeG-5ac60ay-SA
• Architecture: ARM 32-bit
• CPU: Qualcomm IPQ-4019, Quad-Core @ 448–896 MHz (auto)
• RouterOS Licence: Level 4
• Operating System: RouterOS
• RAM: 256 MB
• Storage: 64 MB FLASH
• 60 GHz Radio: 802.11ay, up to ~600 m range (sector AP)
• 5 GHz Backup Radio: Wi-Fi 5, 802.11a/n/ac, 1 chain, up to 433 Mbps, 11.5 dBi
• Ethernet Ports: 1× 10/100/1000 Mbps (PoE-in)
• Power Input: 802.3af/at PoE-in, 18–48 V
• Max Power Consumption: 13 W
• Cooling: Passive
• GNSS: GPS
• IP Rating: IP66
• Operating Temperature: -40 °C to 70 °C
• Dimensions: 115 × 211 × 90 mm
• MTBF: ~200,000 hours at 25 °C
• Certifications: CE, FCC, IC, EAC, RoHS
• Included: Cube mount bracket, 24 V 0.8 A power adapter, hose clamp, Gigabit PoE injector
