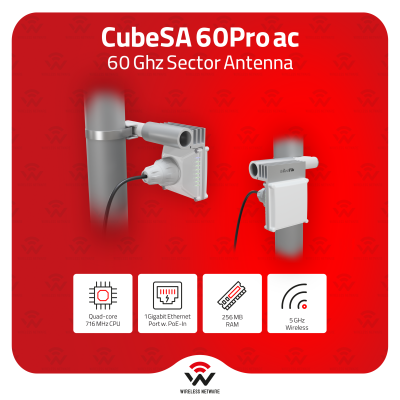

CubeSA 60Pro ac
CubeSA 60Pro ac: A versatile sector antenna for connecting multiple 60 GHz devices with fiber-like speed and stability. Perfect for events, construction sites, and more, with a range of up to 800 meters.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
Fiber-Like Connectivity Without the Cables
The CubeSA 60Pro ac is a high-performance sector antenna designed to enable 60 GHz networking with the 802.11ay standard, offering unmatched speed, stability, and convenience.
This device excels in point-to-multipoint scenarios, allowing connections for multiple devices at distances of 600 meters or even 800 meters when paired with specific devices like MikroTik nRAY. It’s the ultimate solution for temporary setups and dynamic environments such as:
- Live events and festivals
- Construction sites
- Pop-up medical clinics
- Workshops and outdoor events
Key Features
-
Multiple Device Connectivity
- Supports numerous connections in a point-to-multipoint setup.
-
Extended Range and Flexibility
- Reliable operation up to 600 meters, with up to 800 meters when paired with compatible devices like MikroTik nRAY.
-
Automatic 5 GHz Failover
- Ensures uninterrupted connectivity during adverse weather conditions.
-
Durable and Practical Design
- The sturdy metal base improves mounting and cooling options.
- Compact and unobtrusive Cube form-factor.
-
Easy Deployment
- Quick installation, ideal for temporary or rapidly changing setups.
Use Cases
- Pop-up vaccination clinics for seamless data transfer.
- Festival management for secure and high-speed networking.
- Construction sites requiring reliable communication.
- Temporary office setups for high-speed access without cable installations.
Wireless specifications
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 22 | -93 |
54MBit/s | 18 | -74 |
MCS0 | 22 | -93 |
MCS7 | 17 | -71 |
MCS9 | 15 | -68 |
Ethernet test results
CubeG-5ac60ay-SA | IPQ-4019 1G one port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
Bridging | none (fast path) | 81,2 | 986.1 | 234,9 | 962.2 | 1482,6 | 759.1 |
Bridging | 25 bridge filter rules | 81,2 | 986.1 | 227,7 | 932.7 | 231,9 | 118.7 |
Routing | none (fast path) | 81,2 | 986.1 | 235,1 | 963.0 | 1421,8 | 728.0 |
Routing | 25 simple queues | 81,2 | 986.1 | 235,1 | 963.0 | 458,3 | 234.6 |
Routing | 25 ip filter rules | 81,2 | 986.1 | 234,9 | 962.2 | 236,8 | 121.2 |
The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from the date of purchase..
- Product code
- CubeG-5ac60ay-SA
- Architecture
- ARM 32bit
- CPU
- IPQ-4019
- CPU core count
- 4
- CPU nominal frequency
- 716MHz
- RouterOS License
- RouterOS L4
- Size of RAM
- 256 MB
- Storage size
- 64 MB
- Storage type
- FLASH
- MTBF
- Approximately 200'000 hours at 25C
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 1 (PoE-IN)
- Max Power consumption
- 13 W
- Cooling type
- Passive
- PoE in
- 802.3af/at
- PoE in input Voltage
- 18-48 V
- GNSS standards
- GPS
- 10/100/1000 Ethernet ports
- 1
- Dimensions
- 115 x 211 x 90 mm
- Wireless 5 GHz number of chains
- 1
- Wireless 5 GHz standards
- 802.11a/n/ac
- Antenna gain dBi for 5 GHz
- 802.11a/n/ac
- Wireless 5 GHz chip model
- IPQ4019
- Wireless 5 GHz Max data rate
- 433 Mbit/s
- Wireless 5 GHz generation
- WIFI 5
- Certification
- CE, FCC, IC, EAC, ROHS
- IP
- IP54
