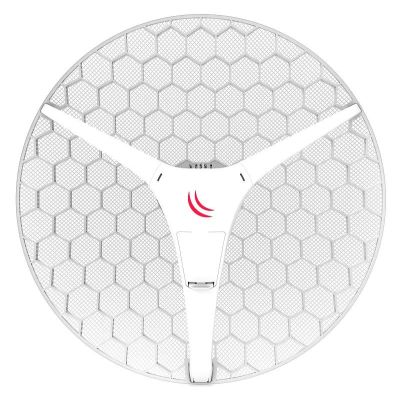

LHG XL 5 ac
The LHG XL 5 ac is a long-range 5GHz wireless device featuring a 27dBi dual-polarization antenna. It supports the 802.11ac protocol and offers Gigabit Ethernet connectivity for high-speed, reliable point-to-point links or as a CPE solution for extended distances. Compact, durable, and cost-effective, this device is ideal for professional deployments.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The LHG XL 5 ac is designed for long-range wireless communication. Equipped with a 27dBi integrated dual-polarization grid antenna and 802.11ac support, it delivers high-speed connectivity with minimal data loss, making it perfect for point-to-point links or long-distance CPE deployments. With a Gigabit Ethernet port, it fully utilizes the 802.11ac protocol's capabilities.
Deployment Solutions:
- Point-to-Point Wireless Links: Ideal for bridging remote locations such as offices, warehouses, or farms.
- CPE Solution for ISPs: Serves as a reliable customer premise equipment for delivering broadband in rural and hard-to-reach areas.
Industries Benefiting:
- Internet Service Providers (ISPs)
- Telecommunication Companies
- Agriculture (e.g., farm connectivity)
- Remote Work and Education Providers
- Government and Municipal Services (e.g., connecting remote offices or facilities)
Wireless specifications
5 GHz | Transmit (dBm) | Receive Sensitivity |
---|---|---|
6MBit/s | 25 | -96 |
54MBit/s | 21 | -80 |
MCS0 | 25 | -96 |
MCS7 | 20 | -75 |
MCS9 | 18 | -70 |
Ethernet test results
RBLHGG-5acD-XL | IPQ-4018 1G one port test | ||||||
Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
kbps | Mbps | kbps | Mbps | kbps | Mbps | ||
Bridging | none (fast path) | 82,2 | 998.2 | 243,9 | 999.0 | 1484,8 | 760.2 |
Bridging | 25 bridge filter rules | 82,2 | 998.2 | 243,9 | 999.0 | 359,2 | 183.9 |
Routing | none (fast path) | 82,2 | 998.2 | 243,9 | 999.0 | 1488 | 761.9 |
Routing | 25 simple queues | 82,2 | 998.2 | 243,9 | 999.0 | 506,3 | 259.2 |
Routing | 25 IP filter rules | 82,2 | 998.2 | 240,8 | 986.3 | 242,9 | 124.4 |
IPsec test results
RBLHGG-5acD-XL | IPQ-4018 IPsec throughput | ||||||
Mode | Configuration | 1400 byte | 512 byte | 64 byte | |||
kbps | Mbps | kbps | Mbps | kbps | Mbps | ||
Single tunnel | AES-128-CBC + SHA1 | 37.9 | 424.5 | 59 | 241.7 | 61.6 | 31.5 |
256 tunnels | AES-128-CBC + SHA1 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
256 tunnels | AES-128-CBC + SHA256 | 36 | 403.2 | 38.5 | 157.7 | 39.8 | 20.4 |
256 tunnels | AES-256-CBC + SHA1 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
256 tunnels | AES-256-CBC + SHA256 | 34.4 | 385.3 | 37.9 | 155.2 | 39.8 | 20.4 |
- Product code
- RBLHGG-5acD-XL
- Architecture
- ARM 32bit
- CPU core count
- 4
- CPU nominal frequency
- 716 MHz
- Operating System
- RouterOS
- Size of RAM
- 256 MB
- Storage size
- 16 MB
- Storage type
- FLASH
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 1 (PoE-IN)
- Max Power consumption
- 8 W
- Max power consumption without attachments
- 8 W
- PoE in
- Passive PoE
- PoE in input Voltage
- 10-30 V
- 10/100/1000 Ethernet ports
- 1
- Dimensions
- Ø 550 x 245 mm;
- Wireless 5 GHz number of chains
- 2
- Wireless 5 GHz standards
- 802.11a/n/ac
- Antenna gain dBi for 5 GHz
- 27
- Wireless 5 GHz chip model
- IPQ-4018
