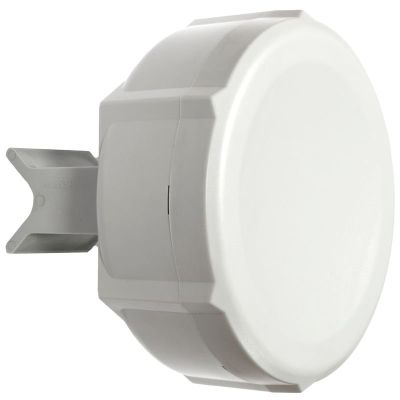

MikroTik SXT 2

OPEN box - 10dbi 60 degrees integrated AP/Backbone/CPE, dual-chain, Gigabit Ethernet

US$55.00 Tax excluded

US$55.00 Tax excluded

Be sure to check availability date
check Available!
US/Canada
We only offer IC Certified products. For international products, contact us.
Please note!
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.

We are glad to introduce our first complete AP/CPE for 2.4GHz - SXTG2HnD! It's powerful 60 degrees 2x2 MIMO 10 dBi sector antenna with wireless on-board- you can use it as a Sector AP, to make wireless point-to-point links or as a CPE- whatever you prefer! It comes with L4 license, perfect for covering the outdoor area for hotspot clients.

The unit is equipped with Gigabit Ethernet port so that customers can take full advantage of dual chain MIMO. It has the same form factor as our famous 5 GHz SXT model.

Package contains SXTG-2HnD, mounting loops, PoE injector, power adapter.

Wireless specifications

2.4 GHz Transmit (dBm) Receive Sensitivity
1 Mbit/s 32 -96
11 Mbit/s 30 -90
6 Mbit/s 32 -96
54 Mbit/s 29 -80
MCS0 32 -96
MCS7 28

-74

Ethernet test results

RBSXTG-2HnDr2 AR9344 1G 1 port test
Mode Configuration 1518 byte 512 byte 64 byte
kbps Mbps kbps Mbps kbps Mbps
Bridging none (fast path) 81.0 983.7 232.0 950.3 269.6 138.0
Bridging 25 bridge filter rules 81.0 983.7 86.0 352.3 87.6 44.9
Routing none (fast path) 81.0 983.7 210.0 860.2 226.9 116.2
Routing 25 simple queues 81.0 983.7 103.9 425.6 106.6 54.6
Routing 25 IP filter rules 56.8 689.8 59.6 244.1 60.5 31.0
  1. All tests are done with Xena Networks specialized test equipment (XenaBay) and done according to RFC2544 (Xena2544)
  2. Max throughput is determined with 30+ second attempts with 0,1% packet loss tolerance in 64, 512, 1518 byte packet sizes
  3. Test results show device maximum performance, and are reached using mentioned hardware and software configuration; different configurations most likely will result in lower results

MikroTik
RB SXTG-2HnD
5 Items
Product code
RBSXTG-2HnD
CPU core count
1
CPU nominal frequency
600 MHz
Dimensions
140x140x56mm
Architecture
MIPSBE
Size of RAM
64 MB
Storage size
16 MB
Storage type
FLASH
Wireless 2.4 GHz standards
802.11b/g/n
Antenna gain dBi for 2.4 GHz
10
Operating System
RouterOS
Max Power consumption
11 W
Tested ambient temperature
-30C to +80C
Number of DC inputs
1 (PoE-IN)
Max power consumption without attachments
11 W
PoE in
Passive PoE
PoE in input Voltage
8-30 V
10/100/1000 Ethernet ports
1
Voltage Monitor
Yes
PCB temperature monitor
Yes
Wireless 2.4 GHz number of chains
2
Wireless 2.4 GHz chip model
AR9344
