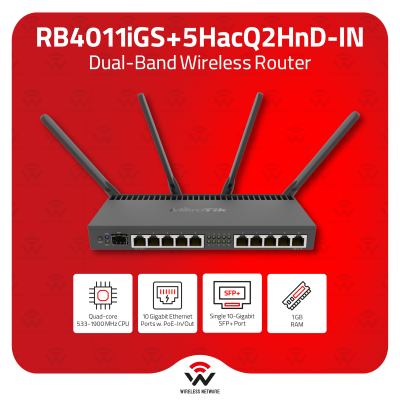

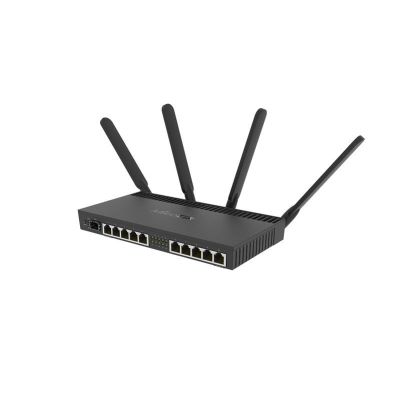

MikroTik RB4011iGS+5HacQ2HnD-IN 10-Port Gigabit Dual-Band 2.4/5GHz 802.11ac Router with SFP+

The MikroTik RB4011iGS+5HacQ2HnD-IN is part of MikroTik's RB4011 series — a family of routers built around carrier-grade processing power in a compact desktop form factor. The Wi-Fi model adds integrated dual-band 802.11ac wireless, making it a comprehensive all-in-one networking platform for high-demand environments.

Processing Power & IPsec Hardware Acceleration

The unit is powered by the AL21400 quad-core Cortex A15 CPU, running at auto-scaling frequencies between 533 and 1900 MHz on the ARM 32-bit architecture. This is the same CPU family found in MikroTik's carrier-grade RB1100AHx4. Paired with 1 GB of RAM and 512 MB of NAND storage, the RB4011 delivers exceptional routing throughput — Ethernet test results show fast-path bridging and routing throughput of up to 9,792.9 Mbps at 1518-byte packets. Hardware-accelerated IPsec enables over 1 Gbps of encrypted VPN throughput at 1400-byte packets (AES-128-CBC + SHA1), making it capable of handling demanding VPN deployments without CPU bottlenecks.

Ethernet & SFP+ Connectivity

Ten 10/100/1000 Gigabit Ethernet ports provide ample wired connectivity, managed by the RTL8367SB switch chip. A dedicated SFP+ cage supports 10Gbps fibre or DAC connections, providing a high-speed uplink path to fibre infrastructure, core switches, or data centre equipment. This combination of ten Gigabit ports and a 10G SFP+ cage makes the RB4011 highly versatile for both LAN distribution and high-speed uplink scenarios.

Dual-Band 802.11ac Wireless

The integrated wireless system is rated AC2000, combining a four-chain 5GHz 802.11a/n/ac (Wi-Fi 5) radio using the QCA9984 chip — delivering up to 1733 Mbit/s — with a two-chain 2.4GHz 802.11b/g/n (Wi-Fi 4) radio using the R11e-2HnD module, delivering up to 300 Mbit/s. The 5GHz receive sensitivity ranges from -96 dBm at 6 Mbit/s to -72 dBm at MCS9, while 2.4GHz sensitivity spans -100 dBm at 1 Mbit/s to -79 dBm at MCS7. The international version supports 2412–2484 MHz and 5150–5875 MHz; the US version is factory-locked to 2412–2462 MHz, 5170–5250 MHz, and 5725–5835 MHz.

PoE Output & Power Options

Ethernet port 10 provides passive PoE output of up to 57 V, with a low-voltage current limit of 600 mA and a high-voltage limit of 420 mA, allowing a single downstream PoE device to be powered directly from the router. The unit itself can be powered via a DC jack (12–57 V) or passive PoE input (18–57 V), with a maximum power consumption of 44 W (23 W without attachments). Passive cooling keeps the unit silent.

Expansion & Management

A MiniPCI-e slot provides the option to add additional radio or interface cards. An RJ45 serial console port allows out-of-band management access. On-board PCB temperature and voltage monitors aid in health monitoring. The unit ships with RouterOS v7 pre-installed and licensed — no additional software purchase is required.

Build & Form Factor

The RB4011iGS+5HacQ2HnD-IN is a desktop indoor unit (IP20) measuring 228 × 120 × 30 mm, designed for rack-shelf or desktop placement. MTBF is approximately 200,000 hours at 25°C. The operating temperature range is -40°C to 45°C. The package includes a 24V 2.5A power adapter, an IEC power cord, and a K-59 mounting kit.

Use Cases

The RB4011iGS+5HacQ2HnD-IN is well suited for enterprise and SMB offices requiring high-throughput routing with integrated Wi-Fi, ISP customer edge routers where VPN performance and a fibre uplink are essential, home lab and power-user environments, and any deployment where carrier-grade CPU performance is needed alongside multi-port Gigabit switching and 10G uplink capability.

Key Specifications at a Glance

• Product Code: RB4011iGS+5HacQ2HnD-IN
• CPU: AL21400 Quad-core Cortex A15, 533–1900 MHz (auto), ARM 32-bit
• RAM: 1 GB
• Storage: 512 MB NAND
• Gigabit Ethernet Ports: 10x 10/100/1000
• SFP+ Port: 1x 10Gbps
• Switch Chip: RTL8367SB
• 5GHz Wireless: 802.11a/n/ac (Wi-Fi 5), 4-chain, up to 1733 Mbit/s (QCA9984)
• 2.4GHz Wireless: 802.11b/g/n (Wi-Fi 4), 2-chain, up to 300 Mbit/s (R11e-2HnD)
• Wi-Fi Speed Rating: AC2000
• PoE Output: Port 10, passive PoE up to 57 V (600 mA low voltage / 420 mA high voltage)
• Power Input: DC jack 12–57 V / Passive PoE 18–57 V
• Max Power Consumption: 44 W (23 W without attachments)
• MiniPCI-e Slots: 1
• Serial Console: RJ45
• Operating System: RouterOS v7 (pre-installed and licensed)
• IPsec Hardware Acceleration: Yes (>1 Gbps throughput)
• Operating Temperature: -40°C to 45°C
• Dimensions: 228 × 120 × 30 mm
• Weather Rating: IP20 (indoor)
• Cooling: Passive
• MTBF: ~200,000 hours at 25°C
• Certifications: CE, FCC, IC, EAC, RoHS
• Included: 24V 2.5A power adapter, IEC cord, K-59 kit
