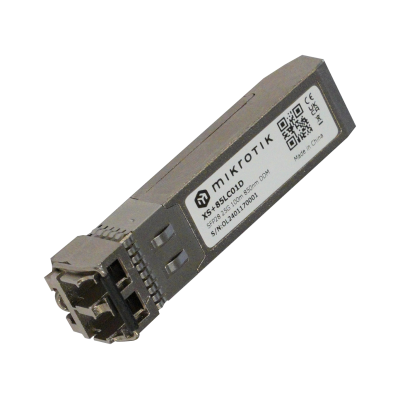

MikroTik XS+85LC01D 1G/10G/25G SFP/SFP+/SFP28 Multimode LC
The MikroTik XS+85LC01D is a cost-effective multimode SFP/SFP+/SFP28 transceiver module supporting 1.25G, 10G, and 25G data rates over distances of up to 100 metres via a Dual LC UPC connector. Operating at 850 nm wavelength, it is compatible with a wide range of MikroTik devices including the RB5009, CCR2116, netPower series, and various CRS and CSS switches. Built-in digital diagnostics provide real-time monitoring of key transceiver parameters to assist with network health visibility and proactive maintenance planning.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik XS+85LC01D is a versatile multimode fibre transceiver module in SFP/SFP+/SFP28 form factor, supporting three data rates — 1.25G, 10G, and 25G — within a single module. This multi-speed compatibility makes it a flexible choice for deployments where ports may operate at different speeds, or where future upgrades to higher speeds are planned. The module operates in full-duplex mode at up to 25 Gigabit across a maximum distance of 100 metres using standard multimode fibre with a Dual LC UPC connector.
The 850 nm wavelength and multimode (MM) operation are well suited to short-range intra-building and data centre interconnects, where multimode fibre infrastructure is already in place. The module is compatible with a broad range of MikroTik equipment, including popular platforms such as the RB5009UG+S+IN, CCR2116-12G-4S+, netPower 16P, and a wide variety of CRS and CSS switches — making it a practical and cost-effective choice for networks of any scale.
A key feature of the XS+85LC01D is its built-in digital diagnostic monitoring capability. The module provides real-time visibility into optical power levels, transceiver supply voltage, temperature, laser bias current, and other key operating parameters. These diagnostics can generate alerts during abnormal transceiver activity or when user-defined operating limits are exceeded, enabling network administrators to monitor transceiver health, plan ahead, and anticipate maintenance or upgrade requirements before issues arise.
The module is rated for a wide operating temperature range of -40°C to 85°C, making it suitable for use in a broad range of environments.
Key Specifications at a Glance
- Product Code: XS+85LC01D
- Format: SFP / SFP+ / SFP28
- Data Rates: 1G / 10G / 25G
- Mode: Multimode (MM)
- Wavelength: 850 nm
- Maximum Distance: 100 m
- Connector: Dual LC UPC
- Digital Diagnostics: Optical power, supply voltage, temperature, laser bias current monitoring
- Tested Ambient Temperature: -40°C to 85°C
- MTBF: Approximately 100,000 hours at 25°C
- Compatible Devices (examples): RB5009UG+S+IN, CCR2116-12G-4S+, netPower 16P, CRS and CSS series switches
- Product code
- XS+85LC01D
- Connector
- Dual LC UPC
- Data Rate
- 1G / 10G / 25G
- Distance
- 100m
- Format
- SFP / SFP+ / SFP28
- Mode
- MM
- Wavelength
- 850nm
