MikroTik XQ+85MP01D 40G/100G QSFP+/QSFP28 SR4 850nm MPO 100m

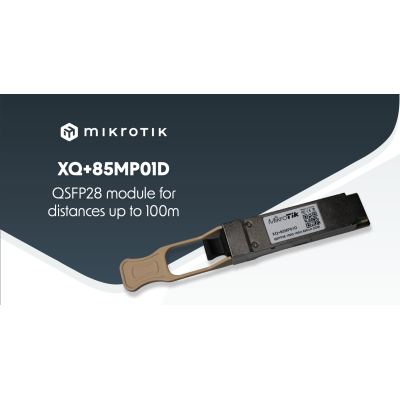

The MikroTik XQ+85MP01D is a dual-rate QSFP+/QSFP28 fibre transceiver module supporting both 40 Gigabit and 100 Gigabit operation over multimode fibre. Using an 850 nm wavelength and a 12-fibre 1×12 MTP/MPO connector in an SR4 configuration, it achieves link distances of up to 100 metres — making it well suited for high-density data centre and core switching deployments within a building or campus. It is compatible with MikroTik's 40G/100G QSFP28-equipped switches and routers such as the CCR2216, CRS504, and CRS518, and provides a cost-effective way to add short-reach 40G or 100G multimode fibre connectivity to any supported platform.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The XQ+85MP01D is a compact QSFP form factor transceiver that supports both the QSFP+ (40G) and QSFP28 (100G) standards in a single module, giving it broad compatibility across MikroTik's high-throughput networking product line. The module operates at an 850 nm wavelength over multimode fibre (MM) and uses a 1×12 MTP/MPO connector, following the SR4 parallel-optic architecture where multiple lanes are transmitted simultaneously across the fibre ribbon. This approach delivers full 40G or 100G throughput at distances up to 100 metres, covering the majority of within-building and data centre rack-to-rack or top-of-rack-to-core interconnect scenarios.
The MPO connector format is the industry standard for high-density parallel optic deployments and pairs with pre-terminated MPO trunk cables and fanout assemblies commonly found in structured cabling environments. Because a single MPO ferrule carries all the necessary fibres for both 40G and 100G SR4 operation, the XQ+85MP01D supports clean, cable-efficient installations without requiring separate LC patch panels or fanout cables at the transceiver end.
Compatible MikroTik host devices highlighted on the product page include the CCR2216-1G-12XS-2XQ, CRS504-4XQ-IN, CRS504-4XQ-OUT, CRS518-16XS-2XQ-RM, CRS510-8XS-2XQ-IN, CRS520-4XS-16XQ-RM, and CRS326-24S+2Q+RM — covering MikroTik's full range of QSFP28-capable core switches and routers. The module carries an MTBF of approximately 100,000 hours at 25 °C.
Key Specifications at a Glance
- Product Code: XQ+85MP01D
- Form Factor: QSFP+ / QSFP28
- Data Rate: 40G / 100G
- Fibre Mode: Multimode (MM)
- Wavelength: 850 nm
- Connector: 1×12 MTP/MPO
- Max Distance: 100 m
- MTBF: ~100,000 hours at 25 °C
