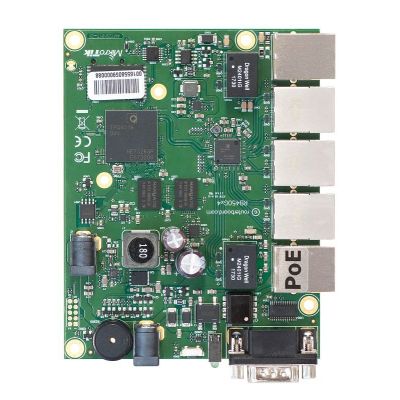

MikroTik RB450Gx4 Quad-Core 5×GbE RouterBOARD
The MikroTik RB450Gx4 is a bare RouterBOARD — IPQ-4019 quad-core ARM 32-bit at 448–896 MHz (auto), 1 GB RAM, 512 MB NAND flash, microSD slot, RouterOS v7 License 5, 5× GbE, RS232 serial console, passive PoE-out on Ether5 (500 mA low/high voltage), 3 power inputs (2× DC jack 10–57V + passive PoE-in 802.3af/at 12–57V), hardware IPsec acceleration, 16W max / 4W without attachments, PCB temperature + voltage monitors, beeper, passive cooling, IP00, 90 × 116 mm, -40°C to +70°C, MTBF ~100,000 hours at 25°C. CE, EAC, RoHS — no FCC, no IC. No enclosure included — compatible with RB850 and RB450 series enclosures.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The MikroTik RB450Gx4 is a bare RouterBOARD — a quad-core ARM router board with 5× GbE, 1 GB RAM, hardware IPsec acceleration, and passive PoE-out on Ether5, supplied without an enclosure for custom deployments, embedded installs, or existing RB450/RB850 chassis upgrades.
**Quad-core IPQ-4019 ARM — hardware IPsec acceleration**
IPQ-4019 quad-core ARM 32-bit at 448–896 MHz auto-scales under load — 4 threads available to RouterOS for firewall, NAT, routing, VPN, and bandwidth management workloads. Hardware IPsec offload accelerates site-to-site VPN throughput beyond what a comparable software-only CPU delivers. 1 GB RAM handles large connection tracking tables and complex firewall rule sets for SMB and small ISP edge deployments.
**512 MB NAND + microSD — expanded storage for logging and backup**
512 MB NAND provides ample space for RouterOS v7 and configuration. MicroSD slot accepts standard cards for extended data logging, configuration backups, and Dude network monitoring server storage without USB adapters.
**3 power inputs — 2× DC jack + PoE-in 802.3af/at**
Two DC jacks accept 10–57V — dual feed redundancy without external failover hardware. PoE-in accepts 802.3af/at or passive 12–57V as a third input option. Passive PoE-out on Ether5 (500 mA low and high voltage) powers a downstream MikroTik wAP, mAP, or SXT without a separate injector.
**No enclosure — compatible with RB450 and RB850 series enclosures**
Supplied as a bare board — identical form factor (90 × 116 mm) to the RB850 and RB450 series. Fits existing enclosures from those product lines. Use the RB450Gx4 as a drop-in board upgrade or build into a custom chassis.
**Canadian market note:** CE, EAC, RoHS only — no FCC, no IC. Wired router board, no wireless transmitter — no ISED wireless type approval required.
- Product code
- RB450Gx4
- Architecture
- ARM 32bit
- CPU core count
- 4
- CPU nominal frequency
- 716 MHz
- Operating System
- RouterOS
- Size of RAM
- 1 GB
- Storage size
- 512 MB
- Storage type
- NAND
- Tested ambient temperature
- -40°C to 70°C
- Number of DC inputs
- 3 (PoE-IN, DC jack)
- DC jack input Voltage
- 10-57 V
- Max Power consumption
- 16 W
- Max power consumption without attachments
- 4 W
- PoE in
- 802.3af/at
- PoE in input Voltage
- 12-57 V
- PoE out
- Passive PoE
- Max out per port output - input (less than 30 V)
- 500 mA
- Max out per port output (input more than 30 V)
- 500 mA
- Max total out (A)
- 500 mA
- 10/100/1000 Ethernet ports
- 5
- Dimensions
- 90 x 115 mm
- Memory card type
- microSD
- Serial port
- RS232
- Voltage Monitor
- Yes
- PCB temperature monitor
- Yes
- Certification
- CE/RED, EAC, ROHS
