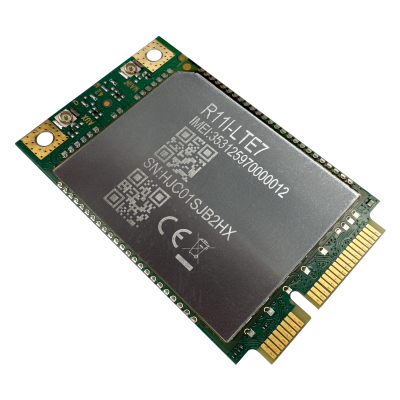

R11e-LTE7
The R11e-LTE7 is a compact CAT7 LTE miniPCIe modem designed for MikroTik RouterBOARDs. With speeds of 300 Mbps down / 100 Mbps up and added support for Band 32 & 28, it provides a reliable drop-in upgrade for mobile and embedded connectivity—without the need to redesign your setup.
We only offer IC Certified products. For international products, contact us.
Ship Charge Will Display As Free Until Ship Address / Location Is Provided To Calculate Ship Charge.
The R11e-LTE7 is a next-generation LTE CAT7 miniPCIe modem designed for MikroTik RouterBOARDs. With speeds up to 300 Mbps down / 100 Mbps up, it supports Band 32 and Band 28 for improved performance, even in crowded areas. It's the ideal drop-in upgrade for FG621-EA, with a smaller form factor to fit compact systems like LtAP and RBM33G.
Key Features:
-
High-Speed LTE Modem: CAT7 performance with 2x2 MIMO for fast, reliable internet access.
-
Band Expansion: Added Band 32 (1500 MHz) and Band 28 (700 MHz) for improved coverage.
-
Plug-and-Play: Drop-in compatibility with miniPCIe + USB systems—no redesign needed.
-
Compact Design: Smaller than FG621, easier to integrate into tighter spaces.
Deployment Solutions:
-
Mobile Integrators: Upgrade existing MikroTik devices like LtAP or RBM33G for better LTE.
-
Field Installations: Add robust LTE support to remote infrastructure or vehicle networks.
-
IoT & Edge Devices: Bring CAT7 speeds to embedded solutions with USB-powered boards.
Industries Benefiting:
-
Fleet management and transportation
-
Industrial IoT systems
-
Outdoor network installations
-
Telecom equipment and integrators
- Product code
- R11e-LTE7
- Operating System
- RouterOS
- Max Power consumption
- 5 W
- 3G Category
- R8 (42.2Mbps Downlink, 5.76Mbps Uplink)
- 3G bands
- 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz)
- LTE Category
- 7 (300Mbps Downlink, 100Mbps Uplink)
- LTE FDD bands
- 1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)
- LTE TDD bands
- 38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz)
- MIMO DL
- 2x2
- MIMO UL
- 1x1
- TAC
- 35312597
- Format
- miniPCIe
- Operating Temperature
- -10°C to +55°C
- LTE modem
- ASR1828
- RF connector type
- 2 uUFL
